LED Bowlight 100W Spot Lights for Marine Fishing Industry Lighting

Product Description

Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FS-LEN-053/055 50W 3600-7500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.70 346*200*65
LCD-FS-LEN-103/105 100W 12000-15000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 3.33 365*310*60
LCD-FS-LEN-153/155 150W 18000-20000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 3.80 365*365*60
LCD-FS-LEN-203/205 200W 24000-32000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4. 65 365*420*60
LCD-FS-LEN-303/305 300W 36000-50000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 8.20 590*387*63
SUITABLE FOR: With LCD-FS-LEN series LED site & area and floodlight luminaires, high output lighting doesn't have to mean high energy and maintenance costs. LCD-FS-LEN series provides your outdoor area with bright, uniform illumination while slashing energy and maintenance costs compared to traditional lighting technologies. And instill a sense of security and attract attention in any large area or floodlighting application without the hassle of frequent relamping or high utility bills.A wide variety of sizes, lumen outputs, modules, optics and other features offer increased flexibility without under- or over-lighting the space. LCD-FS-LEN's application-specific optics, such as automotive front row and airport apron, ensure that light is directed exactly where it is needed to maximize efficiency and minimize operating costs. With the highest lumen output available on the market today,LCD-FS-LEN series can help you achieve optimal light levels with fewer luminaires compared to traditional 1000W HID solutions without compromising light quality or a sense of security for those in the area.LCD-FS-LEN's full illumination lets your inventory sparkle and shine at night without unnecessary light trespass. LCD-FS-LEN area and site luminaires are available with a color rendering index (CRI) of 80, ensuring your inventory will look its best day and night. Longlasting,energy-efficient LED technology helps to significantly lower energy and maintenance costs compared to traditional lighting technologies, while optional programmable dimming and motion response sensors further enhance energy savings without compromising a sense of security.LCD-FS-LEN casts bright, uniform light across the entire parking lot, eliminating dark zones between poles, so that pedestrians and drivers feel a sense of security as they drive and walk throughout the area. While dimmable LED technology significantly reduces operating and maintenance expenses, the simple retrofit onto existing poles means that initial expenses are minimized, too. And as the number of luminaires can be reduced without compromising light quality, poles can be eliminated from the space to reduce clutter.LCD-FS-LEN has a variety of mounting options and optical distributions to ensure a sense of security throughout any outdoor area, such as airport terminals, parking lots, docks and piers.LCD-FS-LEN's Airport Bracket optics, available in the floodlight configuration, are designed to address the specific needs of this application, minimizing spill light and glare, and may be aimed to achieve cut off requirements.
(1)DC available on special request
(2)Warm white Neutral White and cool white available indent only
***AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Housing
Main body castings made of a low copper die cast Aluminum alloy (A360) for a high resistance to corrosion, 1.0-1.5mm minimum thickness. Main body extrusions
made of corrosion resistant low copper extruded anodized aluminum alloy (Anodized 6063-T5).
***Driver/Electrical Door
Removable die cast aluminum door made of a low copper alloy (A360) for a high resistance to corrosion. Provides access to electronic components/LED drivers. Designed for robust IP66 rated seal using one-piece silicone rubber gasket surrounding the entire perimeter of the electronics compartment. Door secured with 8 captive screws outside of gasket perimeter.Driver/electrical compartment is IP67 sealed/ rated in all aiming positions including upward aiming floodlighting applications and including when PCB option is installed.
***Light Engine
Composed of 4 main components: Heat Sink / LED Module / Optical System / Driver. Electrical components are RoHS compliant. IP66 sealed light engines. LEDs tested by ISO 17025-2005 accredited lab in accordance with IESNA LM-80 guidelines extrapolations in accordance with IESNA TM-21. Metal core board ensures greater heat transfer and longer lifespan.
***Heat Sink
Anodized 6063-T5 Aluminum for a high resistance to corrosion, designed to ensure high efficacy and superior cooling by natural vertical convection. Air flow pattern always close to LEDs and driver optimizing their efficiency and life. Product does not use any cooling device with moving parts (only passive cooling).
***LED Module
Composed of high performance white LEDs. Color temperature as per ANSI/NEMA bin Neutral White, 4000 Kelvin nominal (3985 +/-275K or 3710K to 4260K), CRI 70 Min.
***Optical System
Choice of differents distributions including Spot (SP), Asymmetric 33° Flood (A33), Rectangular Medium Flood (RM) distributions and a specialty distribution designed for Airport bracket applications featuring a wide 80-130° horizontal and narrow 15-20° vertical beam. Composed of high performance UV stabilized optical grade polymer refractor lenses to achieve desired distribution optimized to get maximum spacing, target lumens and a superior lighting uniformity. System is rated IP66. Performance shall be tested per LM-79, LM-80 and TM-21 (IESNA) certifying its photometric performance. Designed and tested to rating IK10 in accordance with European standard EN 62262 (equivalent of international standard IEC 62262 2002).
***Driver
With Meanwell or LCD brand TUV driver,high power factor of 90% min. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 85 to 277 VAC or 347 to 480 VAC rated for both application line to line or line to neutral, ClassI, THD of 20% max. 0-10V dimming driver included, dimming leads pre-wired to controls except when DD option is selected. The current supplying the LEDs will be reduced by the driver if the driver experiences internal overheating as a protection to the LEDs and the electrical components. Output is protected from short circuits, voltage overload and current overload. Automatic recovery after correction. Standard built in driver surge protection of 2.5kV (min).

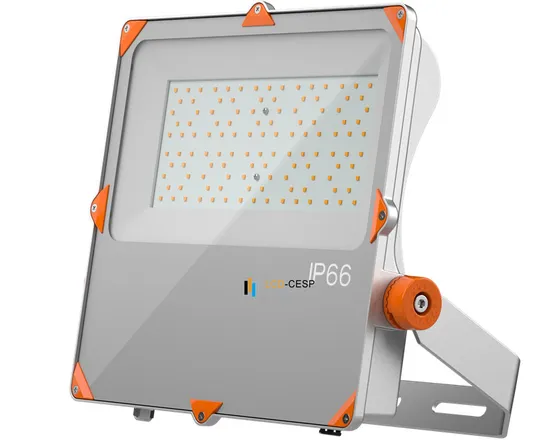

10W-400W LED Floodlight
Wattage: 10W-400W Lumens: 1300lm-56000lm Efficiency: >140lm/w Application: Outdoor Dimmable: YES General Information

Lamp family code	LCD-FS-xxxx-LNxxx
Light source color	warm white, Neutral white, cool white
Light source replaceable	yes
Driver/power unit/transformer	dimmable Ph driver / Meanwell driver / LCD brand driver
Driver included	yes
Optical cover/lens type	reflector or Polycarbonate micro lens optic
Luminaire light beam spread	110° or 60ºx60º, 90ºx90º,30ºx30º,TYPE 3/4/5
Connection	Flying leads/wires
Cable	Cable 1.5 m without plug
Protection class IEC	Safety class I
CE mark	yes
Warranty period	5 years warranty
Optic type outdoor	Symmetrical wide beam or Asymmetric beam
EU RoHS compliant	No
Light source engine type	LUXEON SMD 3030

Operating and Electrical

Input Voltage	220-240 VAC or 110-277VAC
Input Frequency	50 / 60 Hz
Power Factor (Min)	>0.97
Controls and Dimming	DALI,1-10V , Triac , motion sensor or Infrared induction

Mechanical and Housing

Housing Material	Aluminum alloy die-cast
Reflector material	Pure polish aluminum reflector
Optic material	Polycarbonate
Optical cover/lens material	temper glass
Fixation material	Carbon steel with corrosion proof powder coating
Mounting device	Mounting bracket adjustable
Optical cover/lens shape	-----
Optical cover/lens finish	transparent or Frosted temper glass
Overall length	see dimensional drawing
Overall width	see dimensional drawing
Overall height	see dimensional drawing
Effective projected area	0.076m²
Color	Aluminum and black

Approval and Application

Ingress protection code	IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07 [ >4 J vandal-protected]
Surge Protection (Common/Differential)	Luminaire surge protection level until 3 kV

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	>28000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	>140 lm/W
Init. Corr. Color Temperature	3000K / 4000K / 6500K
Init. Color Rendering Index	75
Initial chromaticity	SDCM<=5<>
Initial input power	200 W
Power consumption tolerance	+/-10%

<=5<>
Application Conditions / Product Data

Ambient temperature range	-30 to +50 °C
Maximum dim level	on requests
Full product code	LCD-FS-203-LNXX-4K
Order product name	LCD-FS-Flood light 200W
Order code	N
Numerator - Quantity Per Pack	1 pcs
Numerator - Packs per outer box	1 box
Material Nr. (12NC)	N
Net Weight (Piece)	5.5KG

Product description
LED Shoebox flood Lights are commonly used to replace HPS or traditional shoebox lights and metal halides and can provide an energy savings of up to 65-80% with PLC dimmer system. These shoebox floodlights are safe & durable for outdoor use and protected from rainy, snowy, and weak jets of water, such as sprinklers. LED Shoebox flood Lights are perfect for stadiums, parks, billboards, places of worship and street light.
Product feature
1.Excellent heat disspation with professional and durable design
2.Easy installation and maintenance
3.No wires being exposed to the suny and rainy
4.Highly energy efficient - up to 140lm/w
5.Slim, state-of-the-art, low profile design maximizes wind resistance
6.IP66 rated, suitable for Wet Locations
7.5 Years warranty
The LCD LED Shoebox flood light and Street light brings a uniform lighting experience to large spaces. It was built for parking lots, downtown areas, neighborhoods, walkways and building grounds. Thanks to a variety of mounting options, available wattages and beam angels it can be configured to fit most requirements. Its new and efficient heat sink design allows for a professional and durable housing shape while ensuring excellent heat dissipation. The optional photocell daylight sensor provides a smart way of further increasing the energy savings while assuring that the right level of brightness is given as needed.
Options
- About 25 different beam angel options
- PLC dimmer / DALI / 0-10V dimmable available
- Photocell / Mootion sensor available
Area of application- Parking lots & Streets & Sea port & factory
- Walkways and building grounds
- Roadway and street and downtown areas and neighborhoods Certificates-American market: DLC Premium,ETL
-European market: CE (EMC, LVD, RoHS)
HIGH LIGHT [Super Bright & Energy Saving] - With super bright SMD5050 & 3030 LED sources are sure the whole lamp luminous efficiency up to 140lm/w. LED source, LUXEON SMD5050 & 3030 is super brightness with longer lifespan and less decay. 21000LM equivalent to 750W-800W HID. Professional different LEDiL brand lens such as 70x150°beam angle for Car parking a lot or street side. And with PLC dimmer system ensure energy saving 80%-85% than traditional lamp. [ Waterproof IP65/ IP66 & Easy installation and maintenance] - Waterproof IP66 is perfectly suitable for outdoor hash location application. No matter how it is sunny, rainy, snowy or stormy it can works well properly. This LCD LED series parking a lot lighting fixtures team with slip fitter mount etc 5 differents fit diameter 60mm / 2.36' pole mounting. Really easy to install on round pole. The light is 180 degree adjustable, which can be adjusted to best angle for your aiming area. [ Professionla heat-sink fin heat Dissipation design ] With good therml management fin design for heat-dissipation, which ensure the fin dissipation area is large touching for air at the most possible and cooling down faster. This perfect thermal management makes sure the LED chip and driver under a cool condition operation. Extend lamp's lifespan. Lifespan more than 60,000 hours, that's means 16 years for 10 hours/day. [ LEDiL Brand Lens & Free DIALux layout Service ] With LEDiL brand lens, our lamps have a exact Range & precision right for increased wellbeing and safety, optimised functionality and improved sustainability with energy efficiency. And you just get us the dimension of your parking lot or street or etc..., the pole height and the requirement of illumination. Then we will use DIALUx design a perfect lighting solution for you. This design will tell you how much lights and what power needed. [ Certification & Warranty ] Approved by ETL, DLC (Design Lights Consortium for independent verification), CE, FCC and RoHs certification that ensures better quality, safety, and reliability. The package comes with safety rope, which provide double safety. We also promise 5 years' free maintenance if there is any quality problem.
Products dimension
Light distribution curve
Specification

Standard lumen (130lm~140lm/W)
Model	Nominal wattages (W)	Nominal voltage	Rated luminous efficacy (lm/w)	Nominal luminous flux (lumen)	Beam Angle	LED Quantity	CRI
G6F-A1-80	80	AC100~277V 50~60Hz	140±5	11200±5%	Type 2 Type 3 Type 4 Type 5 etc	140PCS SMD 3030	>70Ra
G6F-A1-100	100		140±5	14000±5%		140PCS SMD 3030
G6F-A1-120	120		140±5	16000±5%		140PCS SMD 3030
G6F-A1-150	150		140±5	20300±5%		140PCS SMD 3030
G6F-A1-200	200		140±5	28000±5%		280PCS SMD 3030
G6F-A1-250	250		140±5	35000±5%		420PCS SMD 3030
G6F-A1-300	300		140±5	41000±5%		420PCS SMD 3030

Electrical data		Photometrical data
Operating frequency	50-63HZ	Available light colors	warm white;natural white;daylight white
Type of current	AC100-277V / 12V 24V 32V	Available color temperatures	3000K;4000K;5700K;6500K
Power factor λ	>0.95	Color rendering index Ra	>70
Efficiency in %	>90%	Standard deviation of color matching	<3<>
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<27<>
Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	Type 2/Type 3/Type 4/Type 5 etc etc

Standards Certification		Temperatures operating conditions
Type of protection	IP65 / IP66	Heatsink temperature	-30~+75ºC
SPD Tested dielectric strength	3-4 KVac	Ambient temperature	-30~+55ºC
Safety features	Open circuit protection; short circuit protection ; overvoltage protection	Storage temperature	-40~+80ºC
Certificates	American market: DLC Premium, European market: TUV, GS, CB, D Mark, CE Australian market: SAA, CTick,RMC
Energy efficiency class	A+ A++

Lifespan		Features/Capabilities and additional product data
Rated nominal Lifetime	5 Years	Base/Socket	Directly wired
Switching cycles	100,000 times	Dimmable	PLC dimmer /0-10V dimmable / DALI dimmable
Lumen maintenance at e.o.l.	70-80%

Packing Information
Model	Dimension(MM)	CTN SIZE(CM)	QTY/CTN	Net Weight/pcs(kg)	Gross Weight /CTN(kg)
G6F-A1-80W/100W/120W/150W	426*378*75	59*36*13.5	1PCS	5.5	8.6
G6F-A1-200W	546*378*75	71*36*13.5	1PCS	6.8	9.8
G6F-A1-250W/300W	671*378*75	83*36*13.5	1PCS	9.6	13.8

<3<><27<><3<><27<>Mounnting Arms Options
