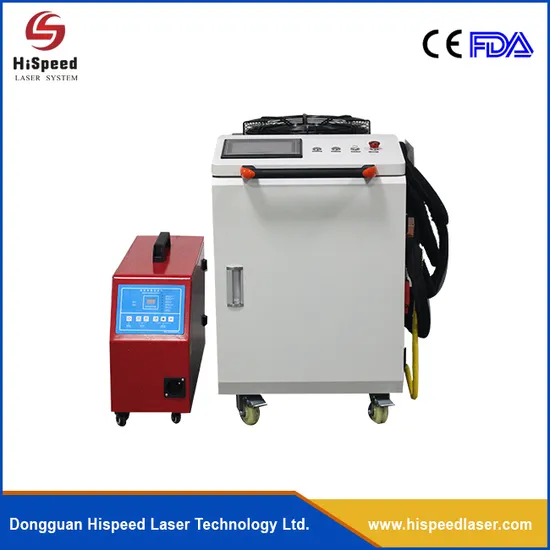

Handheld Portable Laser Welding Machine 1500W Fiber Laser Welder Machines for Metal

Product Description

Handheld Portable Laser Welding Machine 1500w Fiber Laser Welder Machines for Metal
Hand-held laser welding machine can be widely used in cabinets, kitchens, stairs, elevator, hanger, oven, stainless steel door and window guardrail, distribution box, stainless steel home appliance and other industries which have complex, irregular welding process.
Machine Features
> Adopts fiber laser source, high optical power density, good spot quality, stable output power, high quality welding effect can be achieved. > Integrated structure design, small floor space, easy to carry. > Handheld welding head accord with ergonomic design, light and practical. > Small welding seam with small thermal influence, firm welding, high precision welding quality can be achieved, part of the welding without grinding. > Easy to learn and use. With safety protection, low dependence on traditional welding experience, do not need a certificate to work. > Low operating cost, power consumption 3~6kw per hour, except lens and nozzles no other consumables.
Machine Confirgration

Description	# China Top Brand Fiber Laser Source # Touch Screen Software Control System # Handheld Laser Welding Head # Laser Controlling Cabinet with Universal Wheels # Professional Industry Water Chiller # 10m Optical Laser Cable # Wire Feeder
Free of Charge	Tool Box: # 1 set of fitting tools # 1 pcs of protective goggles # 2 pcs of protection lens # 2 pcs of copper nozzel
Guarranty	# Two years for the laser source, one year for the other machine parts. Replace parts during warranty (no human reason) # Europe CE Certification; US FDA Report; UKCA # Free technical support, include learn operating system and some routine methods of troubleshooting.
Package	# Strong wooden case # Dimension 1210*620*900mm # Gross Weight 170 kgs
Delivery Time	# 7-10 working days after get deposit
Payment	# 50% T/T in advance, 50% before delivery

Working Parameters

Laser Power	1000w, 1500w, 2000w
Scan Width	0 ~ 5 mm
Working Environment	-20ºC ~ 40 ºC
Power Consumption	1000w 6.5kw 1500w 8kw 2000w 11kw
Power Supply	Single Phas 110V ~ 240V, 50Hz/60Hz

Applicable Materials
// Common metals and alloys (iron, copper, aluminum, magnesium, zinc, etc); // Rare metal and alloy (gold, silver, titanium); // Metal oxide (either all kinds of metal oxide); // Special surface treatment (phosphorization, anodized aluminum, plating surface); // Plastic and ABS material (electrical appliances shell, daily necessities); // Epoxy resin (electronic originals of outfit, insulation), ceramics and silicon wafers.
After Service Warranty >Two year for the laser source, one year for the whole machine parts. >> All of our machine will be fully-checked by our quality control department before the shipment.
Training details > Operation principles, system and structure, safety and maintenance, software the processing technique, and so on. >> Numerous feedback from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs: a. We guarantee that we will give you a clear reply within 24 hours. b. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause. c. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line. d. We will offer plenty of online supports, just like detailed technical and installation instructions by email,video, telephone. (Training by team viewer)

Contact Us Now to Discuss More Details !
