Power Coating Machinery Line From Yuanli in China

Product Description

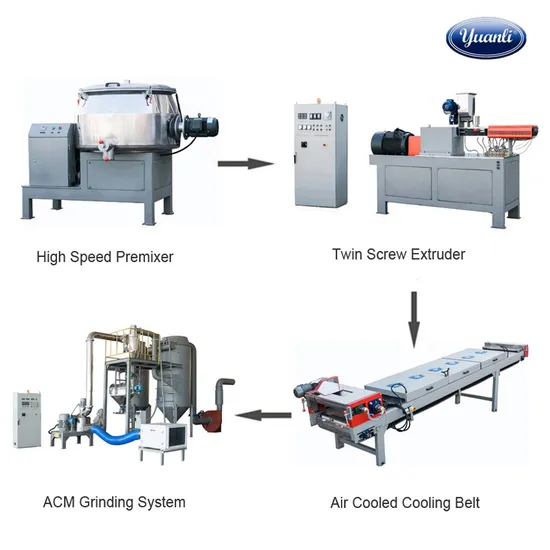

Powder Coating Grinding Mill Equipment:
1.Application:
This series of grinding system is classified as ACM grinding machine, which is widely used in powder coating production line. It can also be used in other industries such as pharmacy, pigment, food, chemicals and ceramic.
2.Main Characteristic:
1. Openable main grinding case for easy access to inside parts for cleaning and maintenance
2. Openable top cap by means of electromotor for easy access to internal parts of cleaning
3. Perfect particle size distribution
4. All parts to be in contact with powder coating made from stainless steel
5. Equipped with famous brand electrical parts
6. Equipped with tracking suspended sieve
7. Classifier never stick with powder
8. Two kinds of pulse time setting
3.Main Technical Parameter:

Model	MF-10N	MF-15S	MF-20/25S	MF-30S	MF-35S	MF-40/50S	MF-60S
Main motor power(kw)	7.5	11	15	22	22	30/37	45
Pin disk speed(rpm)	7000	6500	6000/4500	4500	4000	4000	2900
Classifier motor power(kw)	1.1	2.2	3	3	4	4	4
Classifier speed(kw)	0~2800	0~2800	0~2800	0~2800	0~2800	0~2800	0~2800
Feeding motor power(kw)	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Grinder cover motor power(kw)		0.18	0.18	0.18	0.25	0.25
Discharge motor power(kw)	0.37	0.37	0.37	0.37	0.37	0.37	0.37
Rotary sieve motor power(kw)	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Blower motor power(kw)	7.5	11	15/22	22	30	30/37	45
Blower flow rate(m3/min)	20	30	40/70	70	76	80
Seperating efficiency	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%
Particle size MESH	120~350	120~350	120~350	120~350	120~350	120~350	120~350
Capacity(kg/h)	100~150	150~200	200~300/300~400	400~500	500~600	600~800	800~1000

4.Company Profile:
Yantai Yuanli Machinery Manufacturing Co., Ltd. is a highly regarded, privately owned specialty powder coating machinery and raw material companies with headquarter in Yantai, China. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
5.Our Exhibition:
6. Workshop:
7.Our Advantage & Service:
-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.
-Formulation Provided (our advantage)
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
8.Our Certificate:
9. Machineing Process:
We sincerely welcome customers from all over the world come to visit and negotiation with us!
