Wilo Gagi-I Single-Stage Vertical Centrifugal Pipeline, Cooling System Circulating Water Pump

Product Description

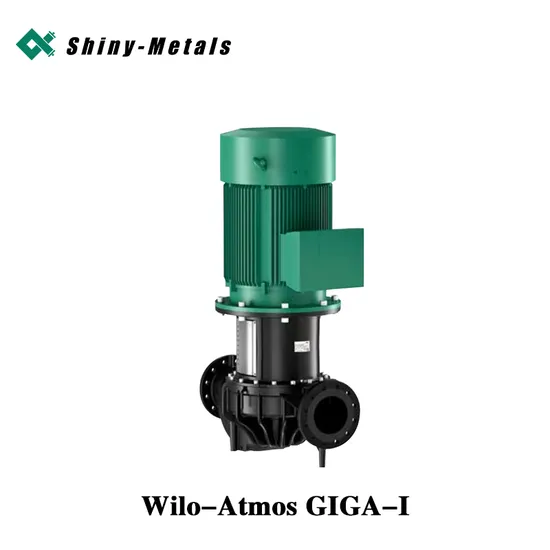

Wilo Atmos GIGA-I is a universal dry rotor pump suitable for heating, air conditioning, and cooling applications in large buildings.
Product Description Wilo-Atmos GIGA-I is a universal dry rotor pump equipped with advanced hydraulic components and IE3/IE4 motors.
Flow range : <450m³/h
Lift range : ≤80m
Max.operating pressure at different fluid temperature : 13bar/16bar
Temperature range : -20ºC~+140ºC
Aplication field :It can be widely used in heating, district heating, air conditioning circulation systems, refrigeration, industrial refrigeration, water supply systems, and irrigation systems. Summary The Wilo-Atmos GIGA-I offers a wide range of components and materials for a wide variety of applications. It can pump different fluids at temperatures from -20 °C to +140 °C making it particularly suitable for air conditioning and cooling applications. Any condensate that forms can be selectively discharged via an outlet.
Equipped with state-of-the-art pump hydraulics and IE3/IE4 motors, the pump is as reliable as it is energy-efficient.The cast components with corrosion-resistant cataphoretic coating also ensure a long service life.
Your advantages

Universal use in different applications, with different fluids and temperatures thanks to diverse components such as impellers, motor sizes and mechanical sealsState-of-the-art pump hydraulics and IE3/IE4 motor technology for reliable and energy saving operationLong service life thanks to corrosion-resistant cataphoretic coating of all cast componentsTargeted discharge of condensate when used in air-conditioning systems and chillersEasy installation with the possibility of securing the pump feet for maximum stabilityEasy maintenance and user-friendly design with optional back pull-out design and cartridge mechanical seal for large pumps

Design Glanded pump in in-line design with flange connection
Application The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.
Typekey

Example	Atmos GIGA-I 40/160-5,5/2
I	In-line pump
40	Nominal diameter DN of the pipe connection
160	Nominal impeller diameter
5.5	Rated power P2 in kW
2	Number of poles

Technical data Permitted temperature range of the fluid: -20 °C to +140 °CMax. ambient temperature 40 °CMechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.Mains connection 3~400 V, 50 Hz (others on request)Protection class IP55Nominal diameter DN 32 to DN 250Standard version for operating pressure: 13 bar (up to +140 °C) / 16 bar (up to +120 °C)Materials Pump housing and lantern: Standard: EN-GJL-250;Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10 stainless steel 1.4408Shaft: 1.4122Mechanical seal: AQEGG; other mechanical seals on requestConstruction Single-stage, low-pressure centrifugal pump in in-line design with
Mechanical sealFlange connection with pressure measuring connection R 1/8LanternCouplingIEC standard motorScope of delivery PumpInstallation and operating instructionsOptions …-L1 variant with bronze impeller (at additional charge)…-L4 variant with stainless steel impeller (at additional charge)...-P6 variant in back pull-out design and with cartridge mechanical seal…-H1 variant with housing made of ductile cast iron on request…-P4 variant for max. operating pressure of 25 bar on requestOther voltages and frequencies as well as ATEX approval on request
