Laboratory Use Textile Sample Loom Semi-automatic Sample Loom

Product Description

Product Description
Product Description

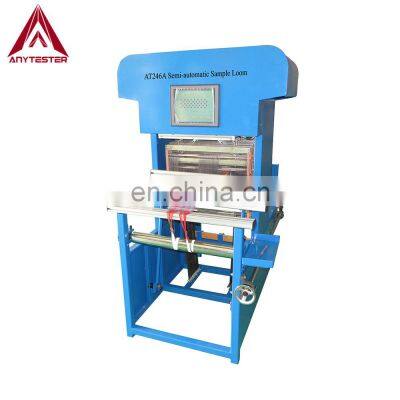

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification

Model	AT246A
Shedding Method	Dobby
Reed width	16inch or 20inch
No. of heald frame	16 (20 optional)
Let-off	Manual
Shedding	Pneumatic & PLC control
Color selection	Manual
Beat-up	Manual
Take-up	Manual
Air pressure	0.45~0.8Mpa
Air consumption	Max. 200L/min
Power	A220V 50Hz, single-phase
Dimensions	1300×980×1510mm (L×W×H)
Weight	Approx. 200kg

Details & Features
★PLC control touch screen with 2G memory capacity to store designed patterns; ★Designable and editable patterns and USB interface to share designed patters;
★Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;
★Outer surface treated by baking varnish, good brightness and nice appearance;
★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★With illuminating lamps;
★Stable operation, low noise and high reliability;
