U Shape Shell and Tube Heat Exchangers

Product Description

U Shape Shell and Tube Heat Exchangers Product Description Product Description

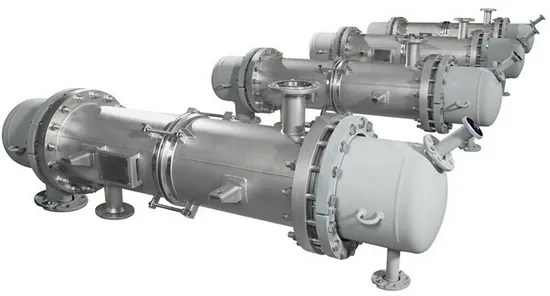

U-tube heat exchanger, a kind of shell-and-tube heat exchanger is a
petrochemical equipment. U-tube heat exchanger consists of the tube box, shell, tube bundles and other main components.
Shell and tube heat exchanger Theory:
Two fluids, of different starting temperatures, flow through the heat exchanger. One flows through the tubes (the tube side) and the other flows outside the tubes but inside the shell (the shell side). Heat is transferred from one fluid to the other through the tube walls, either from tube side to shell side or vice versa. The fluids can be either liquids or gases on either the shell or the tube side. In order to transfer heat efficiently, a large heat transfer area should be used, leading to the use of many tubes. In this way, waste heat can be put to use. This is an efficient way to conserve energy.
Features Shell and tube heat exchanger characteristic:

Simple structure, easy manufacturing	GB150~2011,GB/T151-2014,Manufacture License of Special Equipment P.R.C
Large processing quantity	(1-2,000m3/h)
Stable and reliable operating state	Strong adaptability (applicable to almost all industries)
Adaptability to high temperature and pressure	(≤800°C; ≤6.0Mpa)
Heat tranfer area is fexible	(1m2~500m2)
Tube material	CS,SS,Copper Tube,Ti,Hastelloy C and other materials
Shell material	CS,SS,Ti ,SMO254 and other materials

Product Parameters Shell and tube heat exchanger table:

The Heat Exchanger Tube Specifications Φ20
DN	Quantity of tube pass	Quantity of heat exchanger tube	Quantity of center raw tube	tube pass flow area (m²)	Heat exchanger area(m²)
					Tube length(mm)
					1500	2000	3000	4500	6000
159	1	15	5	0.0030	1.4	1.9	2.8
219	1	33	7	0.0066	3.1	4.1	6.2
273	1	65	9	0.0131	6.1	8.2	12.3	18.4	24.5
	2	56	8	0.0056	5.3	7.0	10.6	15.8	21.1
325	1	99	11	0.0199	9.3	12.4	18.7	28.0	37.3
	2	88	10	0.0088	8.3	11.1	16.6	24.9	33.2
	4	68	11	0.0034	6.4	8.5	12.8	19.2	25.6
400	1	174	14	0.0350	16.4	21.9	32.8	49.2	65.8
	2	164	15	0.0165	15.5	20.6	30.9	46.4	61.8
	4	146	14	0.0073	13.8	18.3	27.5	41.3	55.0
450	1	237	17	0.0477	22.3	29.8	44.7	67.0	89.3
	2	220	16	0.0221	20.7	27.8	41.5	62.2	82.9
	4	200	16	0.0101	18.8	25.1	37.7	56.5	75.4
500	1	275	19	0.0553		34.6	51.8	77.8	103.7
	2	256	18	0.0257		32.2	48.3	72.4	96.5
	4	222	18	0.0112		27.9	41.8	62.8	83.7

FAQ FAQ:
1. Q: How long can we deliver goods?
A: 15-20days after payment.
2. Q: Where are our main markets?
A: Our main market are North and South America, Southeast Asia, the Middle East, Africa.
3. Q: What payment terms can you accept?
A: We can accept L/C, T/T, etc.
4. Q: Can you accept customized order?
A: Yes, we accept, we have very professional technical group who can design the special products according to your basic parameter/ data sheet/ drawings or sample.
5. Q: Do you have your own factory or just you are a trading company?
A: We are direct manufacturer leader in China, one manufacturing center is located in Guangzhou, Guangdong Province, another is in Huanggang City, Hubei Province
6. Q: Is OEM order acceptable to your company?
A: OEM is Welcome.
