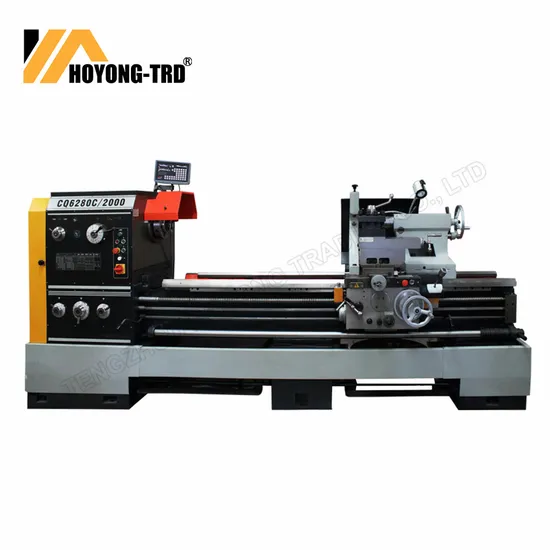

Precision Gap-Bed Lathe Machine Conventional Lathe Cq6280 CS6280c CS6266c
| US$13,000.00-14,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6280 CS6280C CS6266c
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
800mm
Swing Over Cross Slide
570mm
Width of Bed
400mm
Spindle Taper
Mt5
Spindle Motor
7.5kw
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
Introduction
-Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Specifications
| Model | Unit | CS6280C/CQ6280 | |
| Capacity | Max swing over bed | mm | Φ800 |
| Max swing in gap | mm | Φ1000 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ560 | |
| Max workpiece length | mm | 2000/3000 | |
| Spindle | Spindle thru-hole | mm | Φ105 |
| Spindle nose | ISO 702/2 No.8 cam-lock type | ||
| Spindle speed | r/min | 12 step 30-1400 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | Φ90/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/ Tool section | 4/25X25 | |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 320 | |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 3365/4365 | |
| Machine width | mm | 1340 | |
| Machine height | mm | 1490 | |
| Machine weight | kg | 3300/3700 | |
Standard Accessories:
3-jaw chuck and adapter
4-jaw chuck and adapter(For CS62 Series)
4-station conventional tool post
Drive plate
Faceplate(For CS62 Series)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Spanner
Hook spanner
Oil gun
Optional accessories
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
