Injection Molding Computerized Sinotech Plastic Spoon Fork Knife Making Machine

Product Description

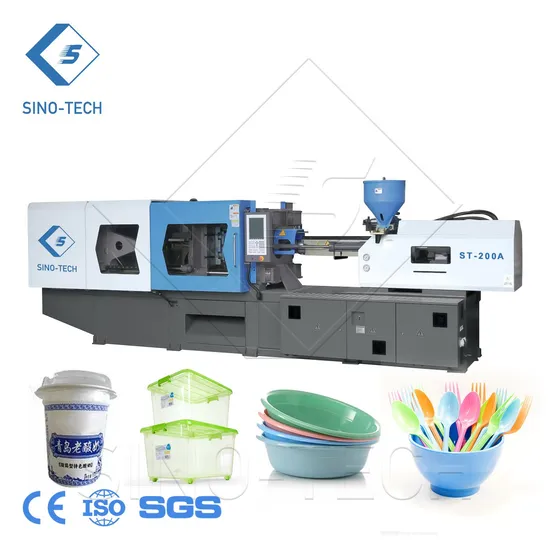

Injection Molding Computerized Sinotech Plastic Spoon Fork Knife Making Machine
Product Description
Sinotech supply all kinds of injection molding machines from 50T to 4000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.
Main Features
1.Arch template, effectively protects the mold, especially suitable for big template with small mold.2.The electric ruler is installed on the crosshead, the position is more precise.3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.5.Connected movable plate, improves its rigidity and reduces deformation6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.7.Arch template fully complies with mechanical property, largely improves template strength.8.More reasonable toggle design, speeds and stabilizes mold opening and closing.9.Adjustable movable plate mounting plate, makes the installation easier.10.Mixed design of T-shape groove and die hole, increases universality of the mold.
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Product Parameters

Item		90SElll
Screw diameter	mm	30	35	40
Theoretical shot volume	cc	124	168	220
Shot weight (PS)	g	113	153	200
Shot weight (PS)	oz	4.0	5.4	7.1
Length/Diameter ratio	L/D	24	20.6	18
Injection pressure	MPa	254	186	143
Injection rate	cm³/sec	83	113	147
Injection stroke	mm	175
Max. Screw speed	rpm	237
Plasticizing capacity (PS)	g/s	11.2	12.4	18.2
Injection unit force	Ton	5.7
Carriage stroke	mm	230
Clamping force	Ton	90
Max. daylight	mm	740
Clamping stroke	mm	360
Distance btwn. Tie bars	mm	360*360
Min mould dimension	mm	250*250
Mould thickness range	mm	120-380
Ejector force	Ton	4.1
Ejector stroke	mm	100
No. of ejector pins	unit	5
Max. motor power	kW	13.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	72
No. of heater zones	unit	3+1+1
Heater input power	kW	7.41
Ultimate capacity	kw	21.81
Current	A	29.8
Net weight	Ton	3.27
Oil filling capacity	L	200

Seller Recommendation

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
