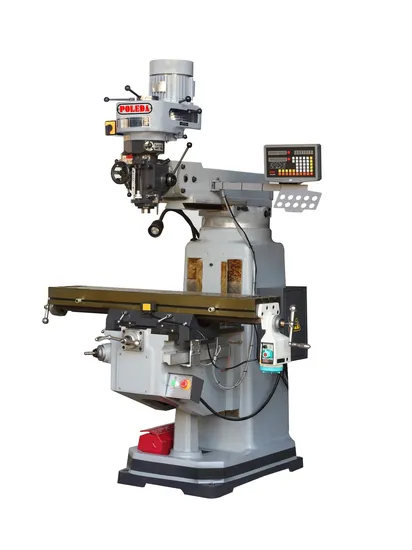

4s Vertical Lifting Table Milling Machine Metal Milling Machine Made in Taiwan

Product Description

Mechanical characteristic
The casting is made of Meehanna cast iron, with good rigidity, no deformation and good stability.
Spindle is equipped with precision bearing combination, strong cutting force and excellent accuracy.
The end milling head adopts a unique inverted hanging design, with good accuracy, easy operation and easy braking. (Customers can select special function products)
The nuts on the three-axis screw are made of advanced phosphorus meter copper, good wear resistance and long service life.
XY shaft slide after high frequency ripening treatment, good tail wear resistance, increase service life.
Equipped with lubrication system to ensure smooth slide. Product Description
1.milling machine rotation speed
The rotation speed of the milling machine directly affects the processing efficiency and the size of the cutting force, in general, the higher the rotation speed, the stronger the cutting ability of the milling cutter. At the same time, high-speed rotation can also improve the surface quality of parts and reduce the surface residual stress.
milling machine cutting speed The cutting speed of the milling machine determines the processing speed and processing quality, and the cutting speed is too high or too low, which will lead to unsatisfactory processing results. In general, the cutting speed of the milling machine should be comprehensively considered according to factors such as material hardness, milling cutter material and milling machine type. milling machine processing accuracy The machining precision of milling machine is one of the important indexes to measure the performance of milling machine, which directly affects the machining quality and the stability of parts quality. The machining accuracy of milling machine is mainly affected by cutting force, rigidity of machine tool, rigidity of tool, workpiece clamping accuracy, initial error of machine tool and so on. milling machine precision stability The precision stability of the milling machine refers to the stability of the accuracy of the milling machine during the working process. Poor precision stability will lead to increased machining errors, affecting machining quality and part quality. The precision stability of milling machine is mainly affected by the initial error of machine tool, thermal deformation of machine tool, tool wear and other factors.
Product Parameters

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1
