Supplier in China Steel Outdoor Lift Platform

Product Description

ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000 Suspended Platform/Construction Cradle/Suspended Cradle/Window Cleaning Gondola
As a professional manufacturer,are always keep product Quality come first, main product including the suspended platform,construction hoist,tower crane,Auto Parking System and so on construction equipment,Weclome to visit our factory!
Product Description Construction wall work cradle, suspended construction cradle is throught the top of suspension mechanism
on the roof of buildings, hanging with wire rope along building facades, the motor assembly with two side of gondola and drive the load which inside the gondola up and down. work gondola have a stromg adaptability to construction site, it is always to be used for wall cleaning, maintenance, decoration, windows or other kind glasses cleaning, installation, maintenance or high buildings surface painting works.
We pay all our attention for the Construction work cradle, working construction cradle, hanging construction cradle, construction cradle design and manufacturing. Wall construction cradle for high buildings and windows cleaning A good tools and make work efficiently.
Technical parameters of suspended construction cradle

model	zlp500	zlp630	zlp800	zlp1000
appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16km	16km	16km	16km
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

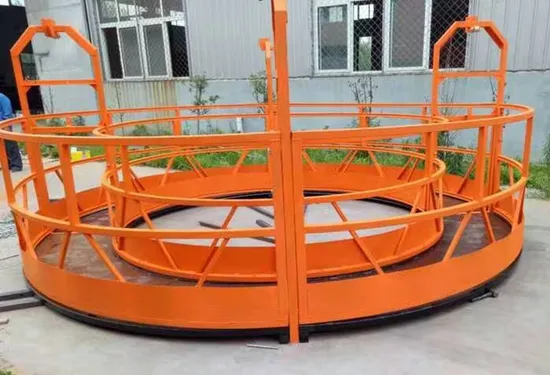

Product Show
Main Parts of suspended construction cradle for high buildings and windows cleaning:

1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized)	6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
2. Suspension Mechanism: Steel (painted or hot galvanized)	7. Safety rope: 18mm,20mm
3. Electric hoists:LTD6.3 or LTD8	8. Electric cable: 3*2.5+2*1.5
4. Safety Lock: LST30	9. Counterweights: Cement , cement with steel cover & Iron counterweight
5. Electric control box: Along with hoists	10. Spare parts

Packing and Shipping
Packages Details of suspended construction cradle for high buildings and windows cleaning

package	platform	counter weight	hoist & safety lock	control panel & other smallparts
	film	pallet	wooden case	carton box

Our Company
The suspended construction cradle can be customized according to customers'requirements(drawing, specifications and so on).
After-sale services

1.Quality Assurance: Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager.

2.Excellent Package: We provide standard,strong,protective package for our products to prevent is from outer damage.

3.Quickly Response: Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry.

Welcome to visit our factory!
Any question,Please feel free to contact me!
