OEM Manufacturer Manual Hand Worm Gear Wire Rope Lifting Pulling Trailer Winch

Product Description

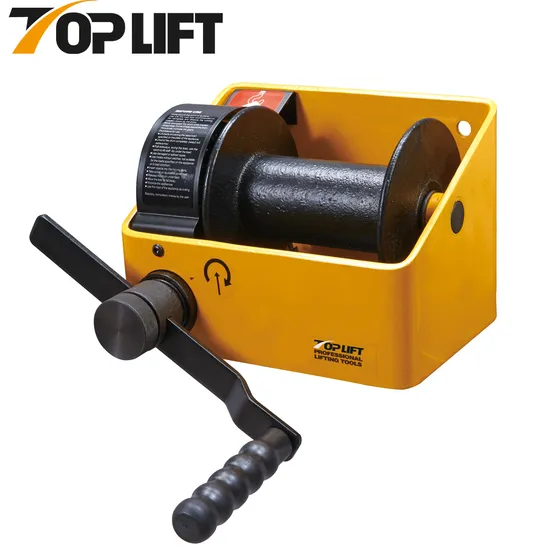

Hand Worm Gear Winch Mainbox MS250-MS1000
Product Information:
WLL:250-1000KGS
Lifting or pulling
1. Position: flat or wall-mounted
2. Industry
3. Shows, sceneries
4. Water treatment, water retentions
5. Sports rooms
6. Hanging chandeliers...
Technical properties
1. Encased mechanical parts
2. Absolute safety by wormgear reduction+Automatic brake
3. Stainless steel ratchet spring
4. Straight-cut gears
5. Highly rugged design, thanks to the exceptional
rigidity of the frame
6. Automatic brake
7. Ergonomic and removable crank handle with
rotating grip. This crank arm can be adjusted to
minimise effort according to the loads.
8. Captive adjusting konb.
Specification

Model	S.W.L (kg)	Load Capacity (kg)	For Wire Rope(mm)	Length (m)	Number of Layers
MS250	250	250	5	20	4
MS500	500	500	6.8	25	4
MS1000	1000	1000	9	35	4

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	φX (mm)	Drive Ratio	Weight (kg)
150	330	150	200	240	5x20	15:1	10
180	360	180	260	240	6.8x25	21:1	16
300	490	300	300	370	9x35	26:1	40

other winches
FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
