XCMG Manufacturer Awp Xg1612HD Used Small Hydraulic Scissor Lift Trolley with 16m High

Product Description

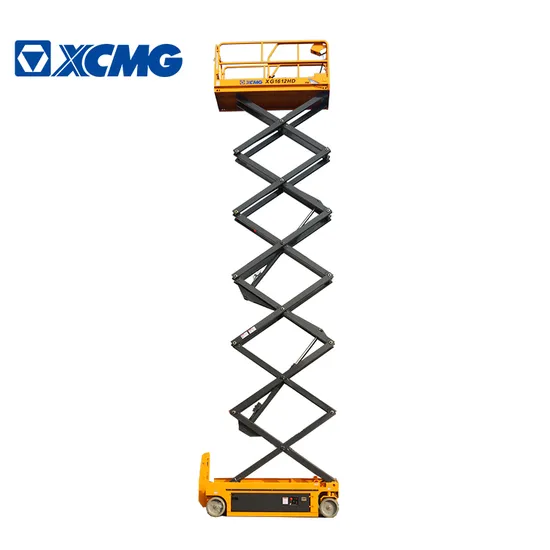

XCMG Manufacturer AWP XG1612HD Used Small Hydraulic Scissor Lift Trolley with 16m High
New aerial work platform developed by XCMG has the work height at 15.7m, the vehicle width at 1.27m, the rated load at 230kg, max. gradeability at 25%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction.
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 230kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item		Unit	XG1612HD
Dimension of machine	Length (without ladder)	mm	2840 (2630)
	Width	mm	1270
	Height (platform folded)	mm	2600 (2060)
Wheelbase		mm	2240
Wheel track		mm	1123
Min ground clearance (Pit protector ascending/descending)		mm	100/20
Dimension of working platform	Length	mm	2640
	Width	mm	1120
	Height	mm	1263
	Extension length of the auxiliary platform	mm	900
Centroid position of machine	Horizontal distance to front shaft	mm	1127
	Height of centroid	mm	720
Total mass of machine		kg	3350
Max. height of platform		m	13.7
Min. height of platform		m	1.478
Max working height		m	15.7
Min turning radius (inner wheel/outer wheel)		m	0/2.65
Rated load		kg	230
Payload of extended platform		kg	115
Lifting time		s	65-82
Lowering time		s	61-80
Drive speed(lowered)		km/h	3.2
Drive speed(elevated)		km/h	0.8
Max. gradeability		%	25
Tilt warning angle (side/forward and backward)		°	1.5/3
Lifting / traveling motor	Model	-	-
	Rated power	kW	4.5
	Manufacturer	-	-
Battery	Model	-	T1275/6-EV-100
	Voltage	v	24
	Capacity	Ah	300
	Manufacturer	-	Trojan/ Leoch
Tire models		-	Traceless and solid /381×127

Product Show
