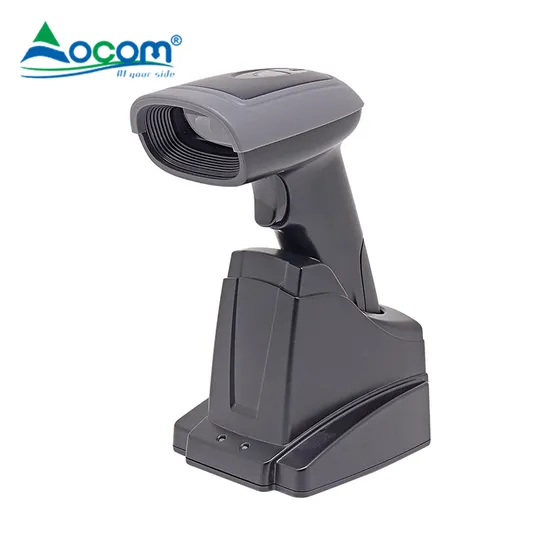

2D Bluetooth Portable Scanner with Standard Long Distance 2.4GHz Communication
Basic Info.
Model NO.
OCBS-W234
Kind
Barcode Scanner
Scan Speed
400scans/Sec
Scanning Light Source
LED
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
CMOS
Optical Resolution
N/a
Application
N/a
Name
Wireless 2D Barcode Scanner with Charge Base
Wireless Method
2.4GHz
Prompting Mode
Buzzer, Indicator Light (LED)
Battery
3.7V 2000mAh 18650 Battery
Charging Time
6.5hours
Fully Working Time
More Than 12 Hours
Shock Resistance
1.5m Free Fall on Concrete Surface
Light Source
Red LED Aim +White Light LED
Transmission Distance
50-80m
Resolution
Code39 5mil, Qr 8.7mil, PCS45%
Transport Package
500*280*460mm/11.0kg for 20PCS
Specification
210*130*95mm
Trademark
OCOM/OEM/NEUTRAL
Origin
Shenzhen, Guangdong
HS Code
8471900090
Production Capacity
50000PCS/Year
Product Description
2D Bluetooth Portable Scanner With Standard Long distance 2.4GHz Communication (M/N:OCBS-W234) Features:Standard Long distance 2.4GHz Communication
Unblocked can transmit 80 meters
1 million pixel high precision scanning engine
190mA low power design can scan 40,000 times
Can work for more than 12 hours in a fully charged state
Standard charging and receive base
Big wireless buffer can transfer 1000 characters
Specification:
| General | |
| Model | OCBS-W234 |
| Material | ABS+PC+TPU |
| IP level | ≥IP54 |
| Wireless Method | 2.4GHz |
| Setting Mode | Manual, Auto-sensing,Continuous Scanning |
| Prompting Mode | Buzzer ,Indicator light(LED) |
| battery | 3.7V 2000mAH 18650 battery |
| Charging time | 6.5hours |
| Fully working time | >12 hours |
| Power supply | DC 5V ±5% |
| Operating current | 190mA(operating mode) |
| Electrostatic Protection | 15KV |
| Shock Resistance | 1.5M free fall on concrete surface |
| Performance | |
| Scanning Speed | 400times/sec |
| Scan Width | 5 * 5 cm² -- 30 * 30 cm² |
| Light Source | Red LED Aim +white light LED |
| Transmission distance | 50-80M |
| Error rate | 1/500million |
| Storage | 2M(about 40000 pieces barcodes )(can be customized) |
| Resolution | Code39 5mil, QR 8.7mil, PCS45% |
| Print Contrast | Min 35% |
| Scanning Angles | Roll 0-360°, Pitch±65°, Yaw±60° |
| Decoding ability | Codabar,Code11,Code39/Code93,UPC/EAN,Code128/EAN128,InterLeaved2of5,Matrix2of5,MSI CODE,Standard2of5. QR CODE,DATA MATRIX, PDF417,Micro PDF 417 |
| Depth of scan field | 5MIL CODE39: 5--12 CM,15MIL CODE39 : 4--25 CM 10MIL CODE93 : 4--21 CM,15MIL UPC/EAN: 4--25 CM 20MIL QR : 4--25 CM |
| Physical | |
| Weight | Gross:500g |
| Package | 210*130*95mm |
| 20 in 1 carton | 500*280*460mm/11.0kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
