Compact Design Washable Medical Keyboard with 12 Function Keys and Fsr Mouse
Basic Info.
Model NO.
SKB-87-M
Material of Keys
Silicone Rubber
Material of Front Panel
Silicone Rubber
Material of Back Panel
Silicone Rubber
Sealing Protection
IP68
Certification
CE, FCC, RoHS, IP68
Wireless
Wired
Application
Laptop, Desktop, Tablet PC, Information Kiosk or Industrial Application
Interface
USB
Working Principle
Conductive Rubber
Text Input
Multi Bond
Shape
Compact
Product Positioning
Industrial and Medical Keyboard
Key Technology
Silicone Rubber
Key Numbers
89
Transport Package
Neutral Packing-Carton Box
Specification
Compact design
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
HS Code
84716071
Production Capacity
3000 PCS/Month
Product Description

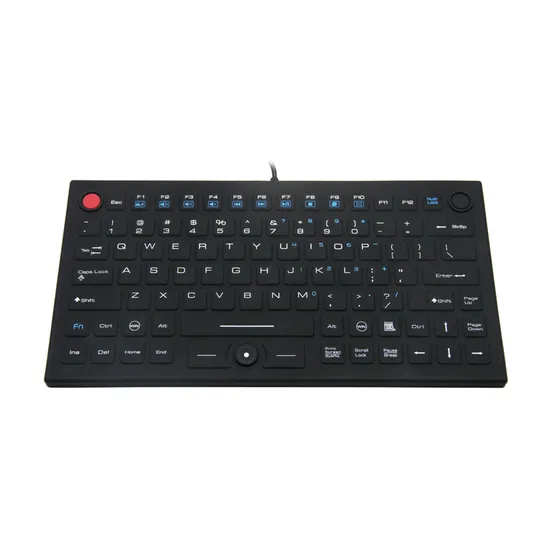

KINGLEADER' s SKB-87-M,is a compact design keyboard with 12 function keys(10 multimedia key) and a small force sensing resistor mouse.It is completely sealed to meet IP68 rating,thus can be cleaned and disinfected with water and/or common hospital-approved disinfectant.Therefore it is widely used in industrial and medical environments.
Due to its compact design,it also is an ideal input device in the place where space is insufficient,for example movable cart,workstation,forklift or vehicle etc.
| Items | Specifications |
| Key Feature | - 89 keys including 12 function keys(10 multimedia keys),built-in Force-Sensing-Resistor mouse - USB interface - 5-second ON/OFF button to allow user to disable all the keys before cleaning or disinfecting the keyboard - Individual button to switch ON/OFF backlight(for backlight version) - 4-step adjustable brightness of backlight(for backlight version) - Addition of antimicrobials to prevent reproduction of harmful bacterials like Coronavirus - EMC Certified for electrical medical equipment - Used in harsh industrial environment OR other medical environments where harmful bacteria exists - Color:Black and white or Custom color available - Backlight or Non-backlight available - Layout:US,UK,DE,ESP,FR or custom |
| Material | - Industrial and medical grade silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | -Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | -CE,FCC,RoHS -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 |
| Dimension | -286.00(L) x 148.00(W) x 11.00(T) mm |
| Weight | 0.50 kgs |
KINGLEADER is an ISO9001:2015 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.
Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.
Why us?
1,ISO9001:2015 certification
2,Audited supplier by SGS and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 20 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry
