China Leading Manufacturer Italy System 5+1 Axis CNC Bridge Saw Stone Cutting Machine with ISO in Kuwait/UAE/Oman/Israel/Palestine

Product Description

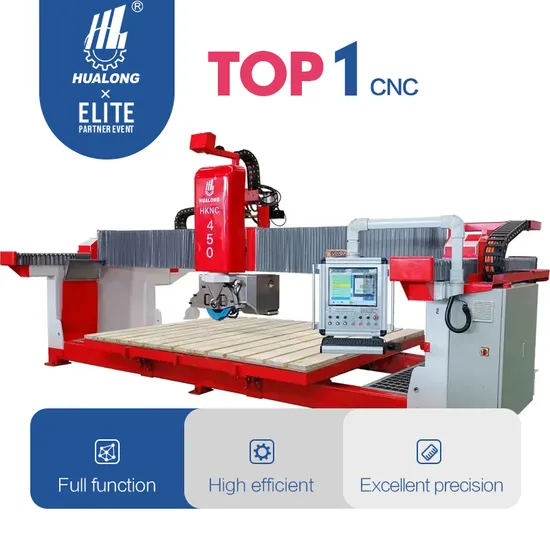

CNC Stone Machine 5 axis interpolated cnc bridge saw HKNC-450 is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features

1) 4 axis lnterpolation and 1 axis electronic control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen. 3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.
7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system

TECHNICAL DATA FOR HKNC-450
Diameter of saw blade	ø400-ø450	mm
Dimension of working platform	3300x2000	mm
Max. cutting length	3300	mm
Max. cutting thickness	95	mm
Max. lifting stroke	250	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	15	kw
Power of cutter frame reciproctating motor	2	kw
Power of crossbeam shifting motor	1.1	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Gross power	22	kw
Water consumption	2	m3/h
Gross weight	4000	kg
Dimensions (L x W x H)	5900x3380x2950	mm

Application Fileds: * 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
Sole Engraving Module (Optional)
* Type: electric spindle * Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or makes curve cutting, corner cutting by milling much faster too.
Control system -- CNC
Brand: Esa Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job easy, perfect and high efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Image Capture
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa's CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Linear Guide
Brand: Hiwin Original: Taiwan, ChinaFamous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
