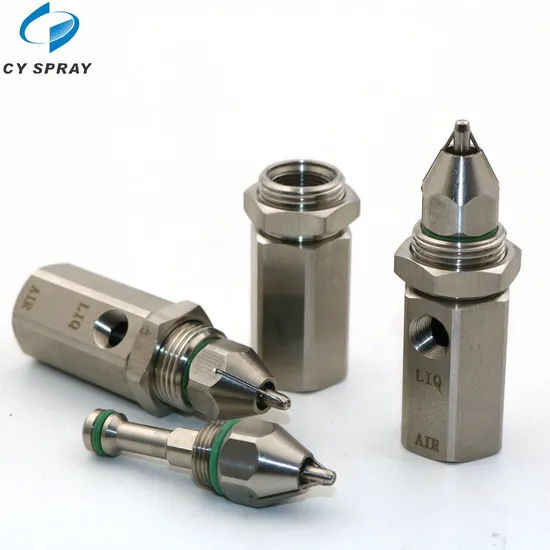

Sv980 Micro-Scale Humidification Dry Mist Fog Dust Suppression Ultrasonic Atomizer Nozzle

Product Description

Scope of application: dry fog suppression
dust suppression spray box
mold lubrication
Wool-spun spray humidification
Air disinfection
Liquid spray micro-addition
All kinds of production workshops, warehouses, factories, humidification, cooling
Object cooling
Cooling of power plant and steelworks; humidification and cooling of high temperature and high humidity environment in brewing and food industry

The use of compressed air impact cavity produced by ultrasonic ultrasonic, the liquid droplets into a diameter of 1 ~ 50 m dense gaseous dry fog, dry fog can gather dust, the dust particle size increases, increase the weight of the condensed dust will settle down in situ dust. This kind of device key is the ultrasonic dry fog nozzle, the nozzle is an ultrasonic region by air driven liquid through the nozzle to achieve atomization effect.
Port, thermal power plant, chemical plant, iron and steel plant, transfer station, crushing and screening buildings, such as closed and semi closed places of non organization dust emissions.

Dust suppression
fog making
humidifying systems
spray coating
odor control

Categorires	ADG SK508 80°	ADG SV980 30°	ADG SV882 60°
Gas pressure	5.2bar	3.5bar	5.2bar
Water pressure	1.5bar	0.6bar	1.2bar
Gas consumption	115L/Min	260L/Min	240L/Min
Water consumption	7.1L/Hr	45L/Hr	20L/Hr
