Reheat Stretch Pet Bottle Blow Molding Machine Price (ZQ-B Series)

Product Description

Reheat Stretch Pet Bottle Blow Molding Machine Price

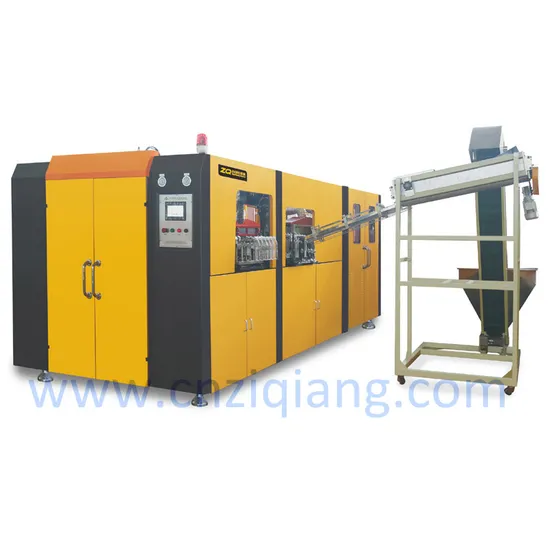

ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L, 2L, 5L and 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2000BPH(2-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Settings
A). PLC colour display: OMRON(JAPAN)
B). Pneumatic parts: FESTO(GERMANY)
C). Controller of preform transfer: Servo motor DELTA(TAIWAN)
D). Other electric parts are all world-famous brand
Reheat Stretch Pet Bottle Blow Molding Machine Price,equipment information.

TYPE	ITEM	ZQ-B600-2	ZQ-B600-3	ZQ-B600-4	ZQ-B600-6	ZQ-B1500-2	ZQ-B1500-3
CONTAINER	Number of cavity	2 cavities	3 cavities	4 cavities	6 cavities	2 cavities	3 cavities
	Output	2400-2700 pcs/hr	3000-3300 pcs/hr	5500-6000 pcs/hr	7000-8000 pcs/hr	2400-2600 pcs/hr	2800-3300 pcs/hr
	Max.container volume	0.6L	0.6L	0.6L	0.6L	2.0L	2.0L
	Max.neck diameter	38mm	38mm	38mm	28-30mm	38mm	38mm
	Max.container diameter	65mm	65mm	65mm	60mm	105mm	105mm
	Max.container height	230mm	230mm	230mm	260mm	300-330mm	300-330mm
ELECTRICAL SYSTEM	Number of lamp	21pcs	28pcs	35pcs	56pcs	27pcs	36pcs
	Max.heating power	21kw	28kw	32kw	34kw	27kw	36kw
	Installation power	24kw	28kw	32kw	48kw	38kw	48kw
	Actual power consumption	14kw	18kw	22kw	24kw	18kw	22kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-8kg/cm²	7-9kg/cm²	7-9kg/cm²
	Low pressure consuming	1000Ltr/min	1200Ltr/min	1600Ltr/min	1600Ltr/min	1200Ltr/min	1400Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	1500-2000 Ltr/min	2000-2200 Ltr/min	2200-2500 Ltr/min	2000-2200 Ltr/min	2000-2500 Ltr/min	2000-3000 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC	10ºC	10ºC	10ºC	10ºC
	Consuming	5600kcal/hr	5600kcal/hr	5600kcal/hr	8000kcal/hr	5600kcal/hr	7600kcal/hr
	Flow rater	30Ltr/min	30Ltr/min	30Ltr/min	88Ltr/min	30Ltr/min	45Ltr/min
MACHINE	Machine dimension	2.3x1.5x1.7(m)	3.5x1.95x2.1(m)	3.7x1.95x2.1(m)	5.0x2.1x2.1(m)	3.25x1.5x2.1(m)	4.5x2.1x2.1(m)
	Machine weight	1.8ton	3.6ton	3.7ton	5.0ton	3.1ton	3.9ton

TYPE	ITEM	ZQ-B1500-4	ZQ-B1500-6	ZQ-B5000	ZQ-B5000-2	ZQ-B5000-4	ZQ-B10000
CONTAINER	Number of cavity	4 cavities	6 cavities	1cavities	2cavities	4cavities	1cavities
	Output	3800-4200 pcs/hr	5500-6000 pcs/hr	650-800 pcs/hr	1200-1500 pcs/hr	2000-2200 pcs/hr	400-500pcs/hr
	Max.container volume	2.0L	2.0L	5L	5L	5L	10L
	Max.neck diameter	38mm	38mm	45-80mm	45-80mm	45-80mm	45-80mm
	Max.container diameter	105mm	105mm	180mm	180mm	180mm	220mm
	Max.container height	300-330mm	300-330mm	350mm	350mm	350mm	400mm
ELECTRICAL SYSTEM	Number of lamp	60pcs	90pcs	24pcs	36pcs	60pcs	36pcs
	Max.heating power	60kw	90kw	22kw	36kw	60kw	36kw
	Installation power	65kw	96kw	22kw	60kw	100kw	40kw
	Actual power consumption	40kw	60-70kw	18kw	22kw	36kw	28kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²
	Low pressure consuming	2000Ltr/min	3000Ltr/min	1200Ltr/min	1600Ltr/min	2600Ltr/min	1600Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	3000-3500 Ltr/min	4500-5000 Ltr/min	1200-1600 Ltr/min	2600-3000 Ltr/min	4500-5000 Ltr/min	1600-2000 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC	10ºC	10ºC	10ºC	10ºC
	Consuming	19000 kcal/hr	25200 kcal/hr	3600kcal/hr	4600kcal/hr	6600kcal/hr	5600kcal/hr
	Flow rater	60Ltr/min	200Ltr/min	20Ltr/min	30Ltr/min	45Ltr/min	30Ltr/min
MACHINE	Machine dimension	4.7x2.1x2.1(m)	7.3x2.2x2.1(m)	3.0x2.1x2.1(m)	4.3x2.1x2.1(m)	5.6x2.1x2.1(m)	4.3x2.0x2.0(m)
	Machine weight	4.1ton	6.35ton	2.3ton	4.0ton	5.5ton	2.8ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
