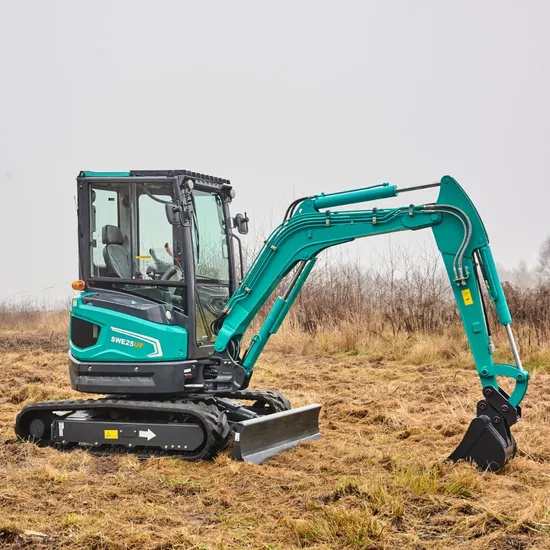

Mini Digger 2.5ton Hydraulic Excavator Swe25UF
Basic Info.
Model NO.
SWE25UF
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
2650kg
Output Power
14.6kw
Max Loading Height
3010mm
Max Digging Depth
2840mm
Tail Swing Radius
765mm
Track Width
300mm
Transport Package
Nude Package
Specification
4140*2455*1500mm
Trademark
China brand
Origin
China
HS Code
84295212
Production Capacity
100units/Month
Product Description
Product Description23ton Crawler Excavator.
The SWE25UF compact excavator is a zero-tail excavator. The SWE 25UF benefits from excellent performance on the job. Its unique zero-tail compact design makes it the perfect option for tight job sites requiring power. Its weight category makes it very easy to transport. In the Sunward tradition of always offering the best value for money, the SWE25UF is no exception since it provides many features and up to 3 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE25UF keeps you safe and provides comfort in all working conditions.
Discover all the other advantages of the SWE25UF.
The SWE25UF has two cab options to choose from.
Open Cab (OROP) Comes standard. Enclosed Cab (EROP) includes heating, the windshield is removable and has sliding windows for airflow.
Detailed Photos
Product Parameters
| SWE25UF Technical Parameters | |||
| Type of cab | cabin/canopy | ||
| Bucket capacity,std. | m3 | 0.08 | |
| Bucket width | mm | 580 | |
| Machine weight | kg | 2650/2550 | |
| Dimensions | Overall length | mm | 4140 |
| Overall height | mm | 2455 | |
| Overall width | mm | 1500 | |
| Ground clearance | mm | 310 | |
| Engine | Brand | / | |
| Model | 3TNV80F-SPSU | ||
| Displacement | L | 1.267 | |
| Output | kW/rpm | 14.6/2400 | |
| Working ranges | Max cutting height | mm | 4355 |
| Max loading height | mm | 3010 | |
| Max digging depth | mm | 2840 | |
| Max vertical wall digging depth | mm | 2580 | |
| Max digging reach | mm | 4775 | |
| Boom swing angle( left/right) | o | 65/50 | |
| Front swing radius | mm | 1980 | |
| Tail swing radius | mm | 765 | |
| Max digging force( Arm) | kN | 14 | |
| Max digging force( Bucket) | kN | 24 | |
| Track | Type | Rubber crawler | |
| Track Width | mm | 300 | |
| Undercarrige | Track Length | mm | 1990 |
| Length to center of Rollers | mm | 1560 | |
| Lenhth to center of track | mm | 1200 | |
| Travelling speed(High/Low) | km/h | 4.1/23 | |
| Gradeability | deg | 30 | |
| Swing speed | rpm | 8.8 | |
| Ground pressure | kpa | 25.1 | |
| Dozer size | Width | mm | 1500 |
| Height | mm | 325 | |
| Lifting capacity ( Height/Depth ) | mm | 330/320 | |
| Hydraulic pumps | Type | 2 variable plunger pump,lGear pump | |
| Displacement | L/min | 2*28.8 + 19.2 + 6.5 | |
| Hydraulic pressure | Mpa | 2*21.5 + 18 | |
| Fuel tank capacity | L | 26 | |
| Hydraulic oil tank capacity | L | 24 | |
Company Profile
Packaging & Shipping
After Sales Service
