Taijia Ultrasonic Heat Meter Non Intrusive,Water BTU Meter

Product Description

Product Description

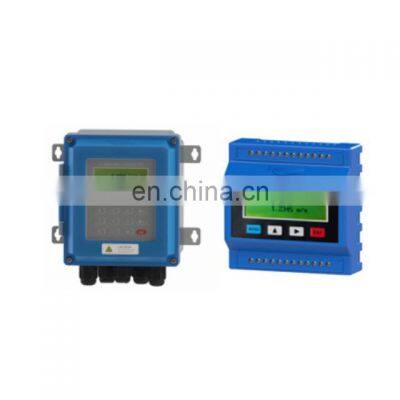

Product Description TDS-100F1 Wall-Mount Flow Meter TDS-100F is a fixed mounted ultrasonic flow meter, and can operate with all our instruments transducer. Their electronic enclosures are rated as IP65,thus,can be installed for both indoor and outdoor.TDS-100M Wall-Mount Flow MeterThe TDS-100M is a compact, high performance general purpose ultrasonic flow meter module. The design of the meter is intended to provide users system integrators and OEM users with a lowest cost but of high performance flow meter. TUF-2000M Ultrasonic Flow Module/RTUThis flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etcTUF-2000B Wall Mount Fixed Ultrasonic Flow meterTUF-200B flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimewatere,cooling water,river water,plant.etc.SpecificationModel NumberTDS-100F1TDS-100MTUF2000BTUF2000MPower supply85~264VAC or 24VDC8-36VDC~24VDCDC8-36V or AC85-264V(Optional)DC8~36V or AC10~30VOutputRS485 output;4-20mA or 0-20mA;OCT outputRS485 output;4-20mA or 0-20mA;OCT output4-20mA output; OCT pulse output4-20mA output; OCT pulse outputDisplayLCDLCDLCDLCDAccuracyBetter than ±1.0 %Better than ±1.0 %Better than ±1.0 %Better than ±1.0 %Humidity85%RH85%RH85%RH85%RHMaterialSteel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedSteel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedSteel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedSteel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedTemperature-30°C~80°C-40°C-160°C-30~160℃-30~160℃Pipe Diameter15~6000mm15~6000mm25~6000mm15~6000mmPower ConsumptionLess than 1.5W-1.5W1.5WProtectionIP65IP57IP67-Measurement PrincipleTransit-time ultrasonic flow meterTransit-time ultrasonic flow meterTransit-time ultrasonic flow meterTransit-time ultrasonic flowmeterTransducer OptionsTechnical parametersS2-typeM2-typeL2-typePipe size (mm)DN15~100DN50~700DN300~6000Pipe size (inch)( 1/2~4" )(2~28" )( 12~240" )Temperature32F~320F ( 0°C~160°C )Dimension (mm)45×30×3071×37×4091×52×44Weight (g)75259535Related productsOur facetoryDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact Us1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment. 4. We accept T/T,Western Union,PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177E-mail：commercial(at)
