Digital Trigger System Memory Depth up to 100mpts Per Channel Oscilloscope

Product Description

The MSO2000X series mixed signal oscilloscope has a maximum sampling rate of 5GSa/s and a storage depth of up to 100Mpts per channel. It uses the unique Ultra Phospho® 3.0 technology, with a waveform capture rate of up to 2,000,000 wfms/s, a 256-level brightness level color temperature display, an advanced digital trigger system, high trigger sensitivity, and a trigger accuracy of 10ps; it supports a variety of advanced triggers, serial bus triggers and decoding; it supports spectrum analysis, power supply analysis, histograms, waveform recording, enhanced resolution, pass test, search and navigation and other advanced functions and analysis modes; it has rich measurement and mathematical operation functions. It uses a 10.1-inch capacitive touch screen, supports a variety of gestures to achieve common operations on waveforms, and WebServer to achieve remote control of a full-featured and powerful instrument.
Nine-in-one integrated oscilloscope
-Protocol analyzer
-Bode plot analyzer
-High-precision frequency meter
-Digital voltmeter
-Power analyzer
-Function/arbitrary waveform generator

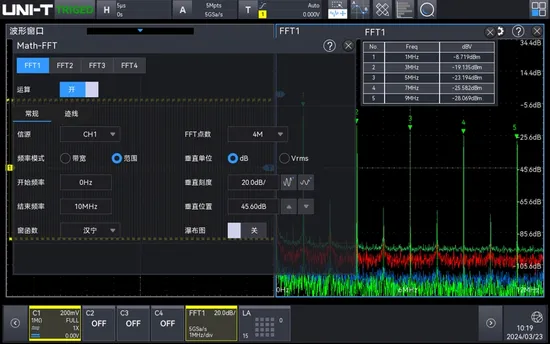

-Spectrum analyzer
-Logic analyzer
-Oscilloscope
UItra Phosphor 3.0
Advanced hardware and software architecture
Supports 8-way parallel graphics mapping, processing rate up to 20Gbps
Waveform capture rate up to 500,000wfms/s
2,000,000wfms/s in sequential mode
Minimum dead time <1μs, making sporadic signals and rare anomalies invisible
54 types: measurement, statistics, trend chart
Automatic measurement of 54 precision parameters
Covering multiple dimensions such as voltage, frequency, phase, power, etc.
Integrate advanced parameter statistics and trend chart visualization analysis functions
Fully and three-dimensionally display signal characteristic changes
Achieve professional-level in-depth insights and efficient data interpretation Resound Photoelectric Technology Research Institute (LSRPTR)
