Top Quality Xe470d Crawler Excavator for International Buyers

Product Description

Product Description

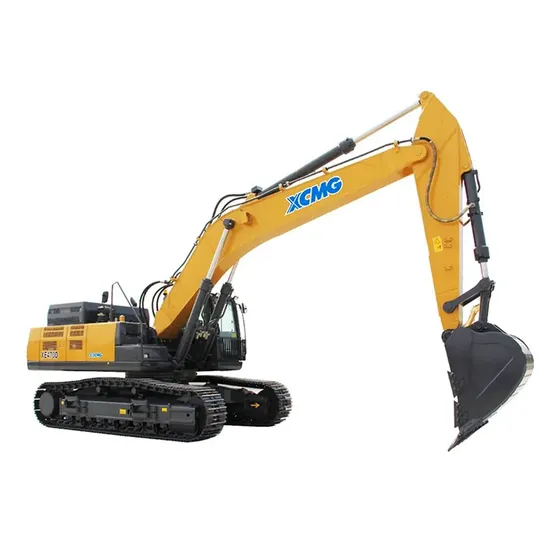

XE470D hydraulic excavator is one of the leading models of large excavators launched by excavator department. The product integrates the valuable experience gained from years of research and development of excavator products, and adopts advanced design and manufacturing methods. Meanwhile, the product adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection", and has perfect mine operation ability.
Ecological and economical
Professional customized engine greatly improves fuel economy. Hydraulic oil flow regeneration system ensures optimum machine performance. Independent cooling system automatically adjusts fan speed.
Multiple applications
Different boom, arm and bucket combinations can adapt to as many working conditions as possible. Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting. Instantaneous pressurization function copes with complex working conditions.
Comfortable operating experience
Air Conditioner and Heator ensure the appropriate temperature. Silicone rubber shock absorber is adopted in the cab. Air-suspending seat equipped with electric heating function. Integrated control panel and large display screen provide multiple information.
Product Parameters

Model	XE470D
Operating weight	46900Kg
Bucket capacity	2.2-2.5m³
Model engine	QSM11-335
Rated power/speed	274/1800kw/rpm
Maximum torque/speed	1790/1400N.m/rpm
Displacement	11L
Travel speed	5.4/3.2km/h
Swing speed	9r/min
Gradeability	35°
Ground pressure	83kPa
Bucket digging force	287kN
Arm digging force	221kN
Maximum tractive force	338kN
Rated flow of main pump	2×360L/min
Travel system pressure	34.3MPa
Swing system pressure	28.4MPa
Pilot system pressure	3.9MPa
Fuel tank capacity	725L
Hydraulic tank capacity	430L
Engine oil capacity	38L
Overall length	11670mm
Overall width	3582mm
Overall height	3890mm
Width of platform	2995mm
Total width of chassis	3582mm
Track shoe width	600mm
Wheel base of crawler	4292mm
Track gauge	2750mm
Counterweight clearance	1324mm
Min. ground clearance	519mm
Max. digging height	9855mm
Max. dumping height	6890mm
Max. digging depth	7000mm
Max. vertical wall digging depth	4500mm
Max. digging radius	10855mm
Min. swing radius	4580mm
