Low Price DC High Voltage Withstand Hipot Tester with 120kv/5mA

Product Description

Low Price DC High voltage withstand Tester with 120KV/5mA
Product introduction
DC hipot tester is widely applied in the DC HV tests carried out for the zinc oxide lightening arrester, magnetic blow-out arrester, power cable, generator, transformer, circuit breaker, etc.
60/80/100/120/200/250/300/400/500KV,
2/3/5/10mA can be customized.
Features
1. High reliabiliy: high frequency voltage multi-doubler reticfier, simple circuit, high overload capability, rare fault, without maintenance.
2. Small volume: one person can carry the largest HVDC generator (200kV/2mA). Its volume is only 1/(2~5) as the volume of the same kind of equipment made in Japan. It reaches the advanced level in the world.
3. Perfect seal by metal housing, high mechnical stength. Irs performence will not be influenced by viberation, moisture, dust and meterological condition.
4. Safe, convenience in operation, metal housing grounded. built-in HV terminals.
5. There is no high voltage and low voltage connecter outside, easy connection.
6. Good auto protection function. It can nor be switched on if the HV output knob is not at zero position. Poeration is simplw. It will not cause maloperation and automatically switch off in over voltage and overcurrent case. There is dampong resistor indide.It is not necessary to connect damping resistor outside.
7. Excellent accuracy: The leakage current at HV side is meadured by digital meter accuracy: 1uA, range switch is not required, disvharge withstand current measurement function is available at low voltage side, It use precise resistor with good stability to measure high voltage.
Technical specification

specification technic parameter	40/4	60/2	60/5	120/2	120/3	120/10	200/2	220/2.5	200/10	300/2	300/3
Rated voltage(KV)	40	60	60	120	120	120	200	220	200	300	300
Rated current(mA)	4	2	5	2	3	10	2	2.5	10	2	3
Rated power(W)	160	120	300	240	360	1200	400	550	2000	600	900
Voltage meter precision	number on voltage meter ±(1.0 %reading±0.2KV)
Current meter precision	number on current meter ±(1.0 %reading±0.2KV)
Ripple coefficient	≤0.5%
Voltage stabilization	stochastic wave ,≤1% when power wave±10%
Overloading ability	overstep 10% of rated voltage when loading nothing for ten minutes; the biggest charge current can be 1.5 times of rated current
power	single-phase alternating current power of 50HZ 220V±10%
working	incontinuous use
	The time should be no more than 30 minutes when continuously use it
Work condition	temperature:-10~40ºC
	relative humidity:≤85% when room temperature is 25ºC
	height above sea level:below1500 meters
capacitance	capacitance of the tested res is absoluteness
	Can be charged with 1.5 times of rated current
configuration	electric insulated Voltage Multiplier is made of epoxy FRP(Fiberglass-Reinforced Plastics)
	Air insulated,without leak

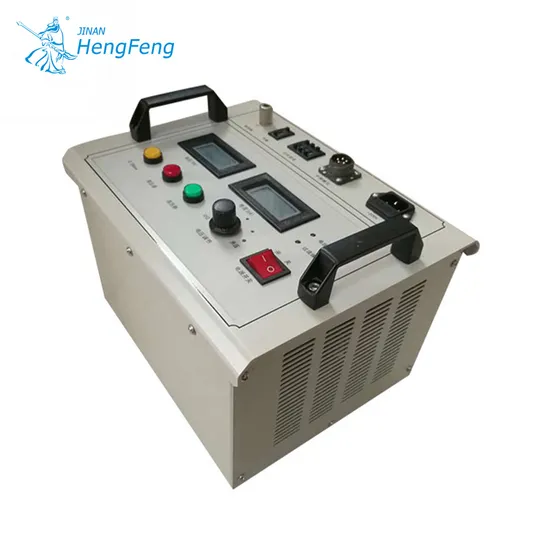

characteristic of Control box	One button for high precision of 0.75UDC--1mA(precision≤1.0%)is suit to do zinc oxide lightening arrester test
	overvoltage protection use dialing code set,be clear at a glance
	International standard box withTwo kind of using way(can be take out from the box for using) makes it easy to use.

Factory
Application
FAQ:
1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
We have our own factory,we make sure to offer you the best quality with competitive price.
3. How can I pay?
We accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Normal models can be delivered with 4-7days, please contact us to check transport time to your address.
5. How to deliver?
We can send by Express, by Sea and by Air.
7.What should I do if I do not know how to use?
We provide detailed operation instructions, operation videos, and engineer's online technical support.
8.What should I do if some parts broken?
We provide a 12-month warranty period and long-term maintenance services.
