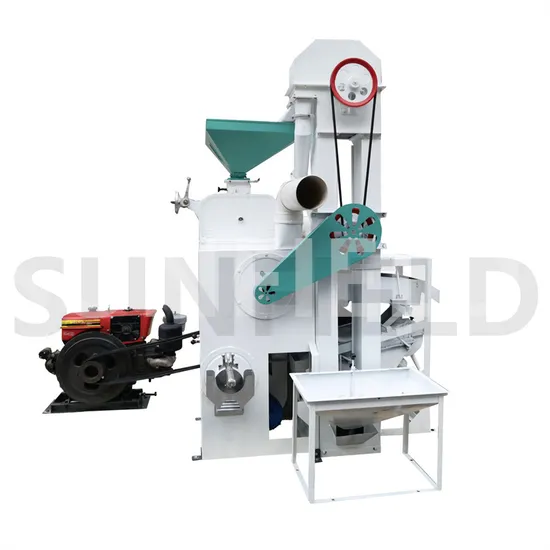

Sunfield 500-600kgs/H Small Combined Rice Milling Machine Rice Mill Machine with Diesel Engine

Product Description

COMBINED RICE MILLING MACHINE
Model: 6LN-15/11B
(Output:500-600kg/hour)
Including: Diesel-driven, Cleaning Sieve, De-stoner, Rubber Roller Husker,
Iron Roller Rice Mill for ONE-TIME Operation

1. Introduction
6LN-15/11B Combined Rice Milling machine is composed with TQS380 Cleaner and De-stoner, 6-inch Mobile gearbox rubber roller husker,11 Type Iron Roller Rice Mill, and Double Elevator. It features great cleaning, de-stoning, and rice whitening performance, compacted structure, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level. It is a kind of rice processing equipment especially suitable for the areas, where power is shorted.

2. Product features
1.Single cylinder diesel engine, suitable for power shortage areas;
2.Complete set rice processing procedure, high rice quality;
3.Unibody base designed for convenient transportation and installation, stable operation, low space occupation;
4.Strong inhale steel roller rice milling, low rice temperature, less bran, improve rice quality
5.Improved belt transmission system, more convenient to maintain.
6.Independent safe diesel electric starter, easy and convenient to operate.
7.Low investment, high yield.

3. Technical Parameter

Model		6LN-15/11B
Rated output ( kg/h)		500-600
Model/Power	Electromotor	YE2-180L-4/22KW
	Diesel engine	CF40M/40HP
Rice milling rate		>65%
Small broken rice rate		<4%
Rubber roller dimension		6 inch
Steel roller dimension(mm)		φ110
Overall weight(kg)		820
Dimension(L×W×H) (mm)		2700×1800×2250
Packing dimension (mm)		1800×1100×2300( Rice mill)
		980×500×850( Diesel engine)

4.Core competitiveness
a. Paddy inlet
Steel frame structure, which is more stable and durable, can hold a bag of rice at a time, low height, easy feeding.
b.Double elevator
Double elevator is compact in structure and low in energy consumption. One side of lifting transports the uncleaned rice from paddy inlet, it flows into the other side of the lifting and transports to husker machine for shelling after being cleaned and treated by the stone removing machine. The two common powers for lifting do not interfere with each other.
c. Flat Rotary Cleaning Sieve
Two-layer Flat Rotary Cleaning Sieve, the first layer sieve can effectively remove the large and medium impurities such as straw and rice leaves in the rice, the rice enters the second layer sieve, screens out the fine grass seeds, dust, etc. The impurities in paddy will be cleaned with high efficiency.
d. De-stoner
The de-stoner adopts a large air volume blow design, which has a large air volume and efficiently removes stones that cannot be screened by the cleaning sieve.
E.Mobile gearbox rubber roller husker
It adopts the universal 6-inch Mobile gearbox rubber roller husker, and the shelling rate can reach more than 85%, when the brown rice is less damaged. The husker has simple structure, small consumption and can easy to maintenance.
F. Husk separator
This separator has strong wind power and high efficiency to remove the chaff in the brown rice. The damper is easy to adjust, and the fan shell and the fan blades are made of cast iron, which is durable.
G.Iron Roller Rice Mill
Strong inhale-air iron roller rice mill, low rice temperature, cleaner rice, special rice roller and sieve structure, low broken rice rate, high gloss of rice.
H.Single Cylinder Diesel Engine
This rice machine can be powered by a single-cylinder diesel engine for power shortage areas and mobile rice processing needs; and it is equipped with an electric starter for easy and convenient operation.

5.Packing Information And Shipping Method
6. Contact Information:
Diana Su
Salesman of Overseas Dept.
Hunan Sunfield Machinery Co.Ltd
Address: Depu Enterprise Park, No.1, Luositang Road, Changsha, Hunan, ChinaWebsite:sunfield.en.made-in-china.com
7.Factory Show
