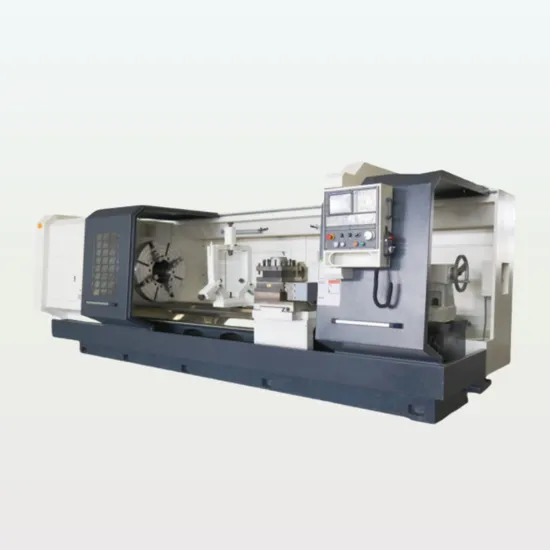

Horizontal Metal CNC Lathe Pipe Machine CNC Pipe Threading Lathe
Basic Info.
Model NO.
QK1335
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Pipe Threading Lathe
Max. Swing Over Bed Dia.
1000mm
Max. Swing Over Cross Slide Dia.
610mm
Max. Length of Workpiece
1500/3000mm
Width of Bed
755mm
Spindle Bore
360mm
Power of Spindle Motor
22kw
Mode of Spindle Speed
Two Gears, Stepless in Gears
Spindle Speed Range
L: 30-130 H: 65-260r/Min
X/Z Axis Travel
X:550 Z:1250mm
X/Z Rapid Traverse Speed
1400mm/Min
Turret
Vertical Four Station
Chuck
780 4 Jaw Chuck
CNC Control System
GSK, Fanuc, Siemens
Net Weight
12t
Transport Package
Wooden Cases
Specification
5000*2200*2100mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
530.00cm * 240.00cm * 250.00cm
Package Gross Weight
13200.000kg
Product Description
Specification Parameter
| Specification | Unit | QK1335 | QK1343 | QK1353 | QK1363 | |
| Max. swing over bed dia. | mm | 1000 | 1000 | 1250 | 1400 | |
| Max. swing over cross slide dia. | mm | 610 | 610 | 860 | 960 | |
| Max. length of workpiece | mm | 1500/3000 | ||||
| Width of bed | mm | 755 | 755 | 755/1100 | ||
| Spindle bore | mm | 360 | 440 | 540 | 640 | |
| Power of spindle motor | kw | 22 | 22 | 37 | ||
| Mode of spindle speed | / | Two gears, stepless in gears | ||||
| Spindle speed range | r/min | L: 30-130 H: 65-260 | L: 23-120 H: 65-258 | L: 23-120 H: 65-258 | L: 2-90 H: 65-120 | |
| X/Z axis travel | mm | X:550 Z:1250 | X:570 Z:1250 | |||
| X/Z rapid traverse speed | mm/min | 1400 | 2000 | |||
| X axis motor | Speed | r/min | 1500 | 2000 | ||
| Torque | N.m | 18 | 22 | |||
| Power | kw | 2.8 | 2.8 | |||
| Z axis motor | Speed | r/min | 1500 | 2000 | ||
| Torque | N.m | 22 | 30 | |||
| Power | kw | 3.5 | 3.5 | |||
| Tailstock quill | Diameter | mm | 140 | 160 | ||
| Travel | mm | 300 | 300 | |||
| Taper | / | Morse 6 | Morse 6 | |||
| Turret | Type | Vertical four station | Vertical four station | |||
| Chuck | 780 4 jaw chuck | 1000 4 jaw chuck | 4 jaw chuck | |||
| CNC control system | GSK, FANUC, SIEMENS | |||||
| Positioning accuracy | mm | 0.02 | 0.04 | |||
| Repeatability | mm | 0.01 | 0.02 | |||
| Overall dimension | mm | 5000*2200*2100 | 5000*2200*2100 | 5000*2800*2200 | 5300*2800*2800 | |
| Net weight | T | 12 | 14 | 18 | 19 | |
