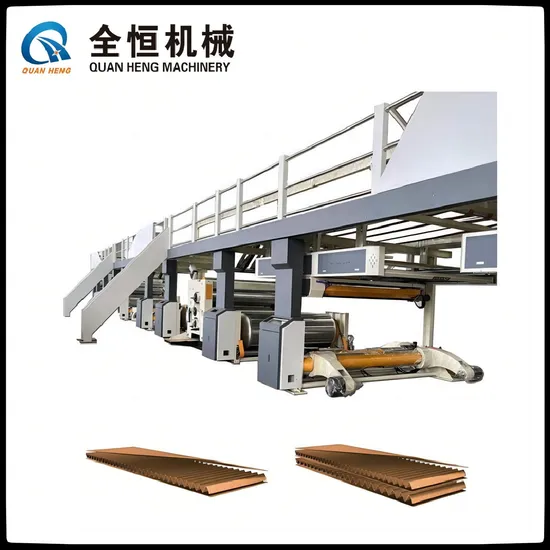

Qh Pack 3ply Corrugated Cardboard Production Line Cardboard Making Machinery
Basic Info.
Model NO.
1800
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Normal Specification Paper
Product Name
Corrugated Cardboard Production Line
Speed
60-80m/Min
Other Name
3ply Corrugated Line
Function
Corrugated Cardboard
Transport Package
Film Packaging
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000
Product Description
Product Description WJ100-1800-3PLY CORRUGATED CARDBOARD PRODUCTION LINE CONFIGURATION LIST| No. | Name | Qty | Feature | |
| 1 | RS Electrical Mill Roll Stand () ( with trolley and track) | 3 | ,,,, --Toothed chuck,manual discbrakes,pneumatic mechanically actuated lift,panning left and right on the middle 4500mm,10mm --Guide rail length is 4500 mm, the trolley adopt 10 mm plate welding | |
| 2 | PH-60 Pre-heater | 2 | φ600mm;,360° --The roller φ600 mm,Electric adjustment angle,adjusting heating area within the range of 360 ° | |
| 3 | SF-10A(280) Single Facer | 1 | φ280mm,48CrMo,;,;;,; --Corrugated rollerφ280mm, 48CrMo high quality alloy steel,plating chromed --Independent gearbox,universal joint drive structure --Cylinder control lifting --Pneumatic control glue,circulating supply glue | |
| 4 | OB Conveying Bridge | 1 | 20063;;, --The main beam is connected with the GB 200 channel steel,63 angle steel --Independent frequency motor drive paper conveying --Suction tension and electric correcting | |
| 5 | Duplex Pre-heater | 1 | φ600mm;,360° --The rollerφ600 mm,electric adjustment angle angle,adjusting heating area within the range of 360 ° | |
| 6 | GM-15 Glue Machine | 1 | φ269mm,25;;;,PLC; --Glue roller φ269mm,carved 25 line pit type mesh --With preheater device --Independent frequency motor drive --Circulating supply glue with PLC control --Man-machine interface display | |
| 7 | DF-40 Double Facer | 1 | 360 mm ;600 mm *9;4;,;; --Main frame is 360 mm GB channel steel --Hot plate 600 mm 9 pics with plating chrome; --4 M cooling section --Adopt pressure bar lifting by pneumatic control --The upper belt correct automatically --Frequency motor drive | |
| 8 | SS-E Electric Blade Machine | 1 | ,200mm;;;;58 --Blade adopt tungsten alloy steel,φ200mm --Electric adjusting and correcting --Automatically grinding --Manual adjust the scorer --5 blade 8 line | |
| 9 | NC Cut-Off(Straight) | 1 | ;;;;10.4 --Full AC servo control --Energy storage type braking --Straight knife structure --Oil-immersed gear transmission --10.4-inch touch screen display | |
| 10 | LS Sheet Delivery Machine | 1 | ;;200mm --Electrical adjust the size of cardboard --Cardboard transverse output controlled by pneumatic; --Max stacking height 200mm | |
| 11 | Glue Making System | 1 | ;,,,, --Customers supply the pipeline --The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump | |
| 12 | Internal Steam System | 1 | :,,,; --Steam system components adopt GB valve: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc --Boiler and pipeline supply by customer | |
| Notes:(This price isn't included the installation charge) 2. Delivery: 120-150days after receiving the deposit 3. Payment: 30% down payment by T/T and 70% by T/T before shipment 4.Installation and training: Buyer need to be bound for the round trip flight tickets, cost for accommodation,and each engineer for $300 USD/day for salary) 5. Guarantee: 12 months | ||||
