Metal 3 4 5 Axis CNC Gantry Precision Horizontal Vertical Lathe Milling Turning Drilling Tapping Machining Center Vmc Machine Tools
Basic Info.
Model NO.
Customized
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size (mm)
Customized
Number of Axis
From 3-5 Axis
Spindle Taper
Bt40 -80
No. of Spindles
1
Type
Vertical Machining Center
Table Travel (Z) (mm)
Customized
Positioning Accuracy (mm)
0.005
Repeatability (X/Y/Z) (mm)
0.003
Range of Spindle Speed(r.p.m)
40 - 8000 r.p.m
Feed Speed(mm/Min)
40 - 8000 mm/Min
Tool Magazine Capacity
24
CNC Control System
Gsc Faucnc
X/Y/Z Axis Rapid Feed
Customized
Worktable Type T Groove
5-18-90
Spindle Motor Power(Kw)
7.5kw
Transport Package
Standard
Specification
Customized
Trademark
WONSTEN
Origin
China
HS Code
8465920000
Production Capacity
50000 Pieces/Week
Packaging & Delivery
Package Size
2200.00cm * 1200.00cm * 1200.00cm
Package Gross Weight
2000.000kg
Product Description

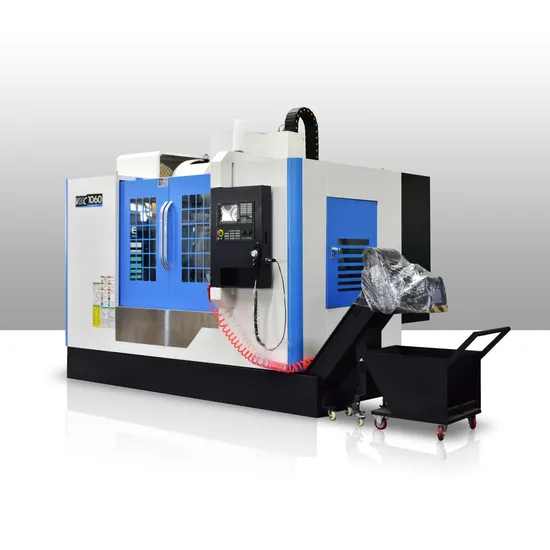

Metal 3 4 5 Axis CNC Gantry Precision Vertical Lathe Milling Turning Drilling Tapping Machining Center VMC Machine ToolsVMC Series Vertical Machining Center Features:
High-precision, high-rigidity and high-precision spindle;
Servo motor drive;
Belt-type spindle has strong rigidity and reliability
High-speed, high-efficiency, high-precision, direct-connected spindle, low noise and low vibration;
Fully meet the needs of users. VMC series CNC vertical machining center is x, y and Z axis servo control semi closed loop, with compact and reasonable structure and overall dimensions, and the main shaft is driven by servo motor.
| Specifications | VMC650 | VMC850 | VMC855 | VMC1060 | VMC1270 |
| X axis | 650mm | 800mm | 800mm | 1000mm | 1200mm |
| Y axis | 400mm | 500mm | 550mm | 600mm | 700mm |
| Z axis | 500mm | 500mm | 550mm | 600mm | 700mm |
| Spindle end face to workbench | 100-600mm | 150-650mm | 150-650mm | 100-700mm | 130-830mm |
| Spindle center to column guide | 476mm | 571mm | 571mm | 667mm | 767mm |
| X-axis fast moving | 32(48)m/min | 24(48)m/min | 24(48)m/min | 24m/min | 24m/min |
| Y axis fast moving | 32(48)m/min | 24(48)m/min | 24(48)m/min | 24m/min | 24m/min |
| Z axis fast moving | 24(48)m/min | 24(48)m/min | 24(48)m/min | 24m/min | 24m/min |
| Cutting feed | 1-10m/min | 1-10m/min | 1-10m/min | 1-10m/min | 1-10m/min |
| Recommended three-axis servomotor torque | 10N.m | 12N.m | 12N.m | 20 N.m | 25 N.m |
| Workbench area | 800×400mm | 1000×500mm | 1000×550mm | 1200×600mm | 1300×700mm |
| weight capacity | 400Kg | 500Kg | 500Kg | 600Kg | 700Kg |
| Work surface height from the ground | 900mm | 900mm | 900mm | 1000mm | 1000mm |
| T-slot | 3×18×125mm | 5×18×90mm | 5×18×90mm | 5×18×100mm | 5×18×115mm |
| Rotating speed | 8000 rpm | 8000rpm | 8000rpm | 8000 rpm | 8000 rpm |
| Spindle taper | BT40 | BT40 | BT40 | BT40 | BT40 |
| Recommended main motor power | 5.5KW | 7.5KW | 7.5KW | 7.5KW | 11KW |
| Positioning accuracy (JIS standard) | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.003mm | ±0.003mm | ±0.003mm | ±0.003mm | ±0.003mm |
| Dimensions | 2000×1500×1950mm | 2300×1850×1950mm | 2300×1850×1950mm | 2800×2300×2500mm | 3200×2400×2700mm |
