Taijia Nonmetallic Board Thickness Tester zd410 Concrete floor slab non metal plate thickness gauge

Product Description

Product Description

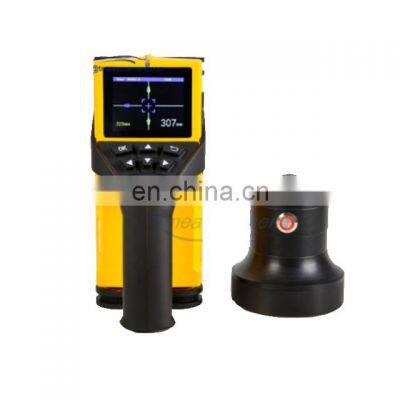

Product DescriptionZD410 integrated floor thickness gaugeZD410 integrated floor thickness gauge is mainly used for non-destructive testing of concrete structures or othernon-ferromagnetic media thickness measurements, such as: measurement of non-ferromagnetic thickness measurement of cast-in-situ slabs, walls, beams, columns, wood and ceramics; The unique design method of combining the probe and the main unit is as simple as testing the corresponding surface of the transmitting probe (floor, etc.), and measuring the non-ferromagnetic thickness value.FeaturesThickness range(mm)20~900Screen320×240Measurement modeThickness detectionPower supplyBuilt in high capacity lithium batteryWorking hours≥16hLaunch probe Working hours≥26hCommunicationUSB interfaceStorage200000 Measuring point of steel barOperationSilicone keypadError range Range (mm) Accuracy20~200±1mm201-400±2mm401-600±3mm601-1000≥±8mmPacking&DeliveryRelated ProductBJLF-1 Crack Width Detector Concrete Crack Depth GaugeSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.TEM 912 digital test hammerTEM 912 digital test hammer automatically record, save, calculate and process data. It automatically record rebound value, DM(Carbonation depth) input, and component strength calculate.ZBL-R630A Rebar scannerZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation,and distribution of rebar by using an electromagnetic induction method. Contact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDAddress:NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033Email office at 2Whatsapp/WeChat:+86 15541112235Phone: +86-411-39685079
