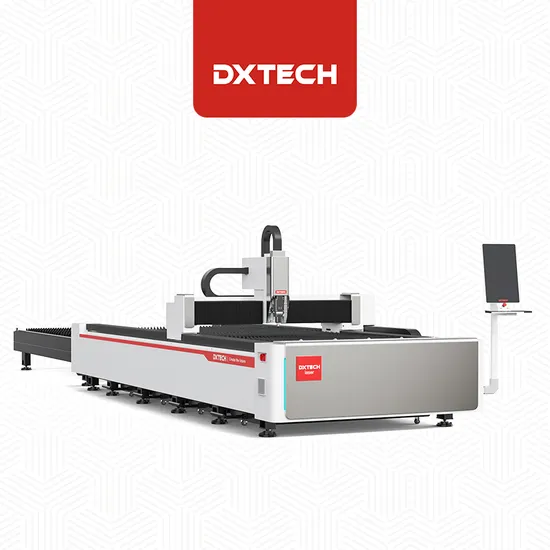

Double Worktable 1530 CNC 1000W 2000W 3000W Sheet Metal Exchange Table Fiber Laser Cutting Machine for Industrial

Product Description

Product Description

The exchange platform metal laser cutting machine is the first choice for large-scale mass production of sheet metal processing. Automatic loading and unloading saves more time. And the double working platform greatly reduces the time for loading and unloading and improves processing efficiency.
Feature
--
1. With double platform, saving more than 50% of space and bring double production benefits.
2.Independent control cabinet
1) Dust proof: all electrical components and laser sources are built in an independent control cabinet to prevent dust pollution.
2) Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can prevent the damage to the components due to the high temperature.
3.Thick-walled carbon steel pipe welding bed Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ºC stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
4. World brand guides, racks and other components, make you no longer worry about the precision of cutting.
Technical Parameters

Model	DXTECH-1530EL	DXTECH-1540EL	DXTECH-2040EL
Working area (mm)	1515*3030	1515*4040	2020*4040
Worktable bearing capacity	800kg	950kg	1300kg
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Max. exchange time	18s	21s	22s
Max. acceleration	1.5G	1.5G	1.5G
Laser power	1kW - 6kW	1kW - 6kW	1kW - 6kW
Laser	Multiple options	Multiple options	Multiple options
Machine bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed
Max. running speed	140m/min	140m/min	140m/min

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A:trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
