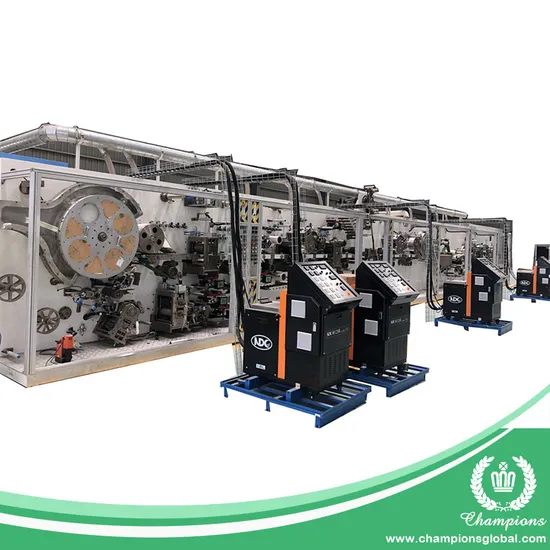

High Speed Fast Easy Type Sanitary Paper Napkin Pads Making Machine Made in China

High Speed Fast Easy Type Sanitary Paper Napkin Pads Making Machine Made in China

US$700,000.00-900,000.00 1 set (MOQ)

Basic Info.

Model NO.
JC-KYB-500
Real Running speed
350-400PCS/min
Automatic Grade
Automatic
Certification
CE
Condition
New
After-sales Service
Video Technical Support, Online Support
Name
High Speed Sanitary Napkin Machine
Product Length
According to The Confirmed Sample
Sanitary Napkin Size
240/280
Designed Production Speed
500PCS/Min
Stable Production Speed
350-400PCS/Min
380V 50Hz.Power
380V/50Hz
120 Kw.Power Consumption
120kw
Machine Dimension
20m(L)×2.3m(H)×2.3(W)
Air Pressure
0.6-0.8MPa(Customer Prepare It)
Machine Color
as Per Customer’s Request.
Machine Production Direction
as Per Customer’s Request.
Rejection Rate
≤2%
After Sales
Provide
Material Size
Width=160-180mm, Diameter≤600mm,
Product List
Provide
Transport Package
Wooden Case
Specification
According to the confirmed sample
Trademark
Champions Industry
Origin
Fujian, China
HS Code
8441809000
Production Capacity
100sets /Per Year

Packaging & Delivery

Package Size
12000.00cm * 12000.00cm * 12000.00cm
Package Gross Weight
59863.000kg

Product Description

High Speed Fast Easy Type Sanitary Napkin Machine Made in China
Equipment Function & Parameter:
1. Full-servo auto-controlling system with high automation while the machine can be also upgraded as per customers reasonable requirement.
2. Most of the spare parts are under numerical control precisely processing, Key mechanical parts are under CNC processing, Main outsourcing parts are World famous brand.
3. Operating interface is the industry PLC with humanistic designing and optional collection for production record.
4. It is workable to mount the camera monitoring system, which can conduct on-line size checking, location inspecting, missing inspecting and stain spot scanning and so on..
5. The equipment can choose the vertical output design Main Technical Parameter:
Outputted products from this machine: High speed fast easy type sanitary nakpin machine
Designed speed: 500PCS/min
Stable Production speed: 350-400pcs/min
Overall size of equipment: 20mL * 2.3mW * 2.3mH
380V 50HZ Power: 380V/50HZ
Weight of equipment According to comfirm the sample

Basic Configuration:
Machine basically structured with firm square steel tube and steel wall. The square tube for holding steel wall size is 50mmx100mm. Steel wall thickness is 20mm. The base frame square tube size is 120mm*120mm. back driving space width is 1m, standing plate is 1.27m.
Automation Configuration:
1-Back side driving has two layers. Change the sizes just need to change 2 pcs of timing belts only.
2-Each raw material holder has frequency controlled motor for winding and unwinding,constant tension control.There is not frequency controlled motors for release paper holder,wing release paper holder and easy tape holder.(There are 12 set of frequency controlled motors for raw materials)
3-Temperature controlled by sensor and temperature controller.
4-The heating roller cylinders synchronous with machine.
5-Safety unit for all cutting tools.
Finished Products:
Product Characteristics 1. Soft and dry top mesh or non-woven sheet,
2. Wings type close-fit panty.
3. Using unique funnel dry mesh sheet,evacuate fluid quick.
4. Breathable bottom sheet.
5. ADL can better absorption of water. Nine Layer Structure 1. Top sheet N.W. 2. Blue ADL
3. Air-laid paper 4. SAP paper
5. PE back sheet 6. Fast-easy tape
7. Release pape on wings 8. Small pack film
9. Release paper on back sheet
In customer's workshop
FQA
1. How long is your Warranty? A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period. Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
2-How about terms of payment?
A:Buyer pay advanced payment 30% to seller by irrevocable L/C after signing the contract
Buyer pay 65% to seller by irrevocable L/C after inspecting the machine and at the time of shipment.
Buyer pay 5% to seller by irrevocable L/C after successful machine installation in buyer's factory.
3-How about After sales ?
A:The seller will send 1 technician to buyer's factory for machine installation and and worker training. The round-trip air-tickets , accommodation and salary 125$/day will be paid by buyer.
Guarantee time for the re-new spare parts is 6 months after delivery. And the 1 year guarantee time for the new spare parts. 4-When can i get the quotation?
A: After we confirm the products structure and configurations with you side,can offer you price within 24hours.
5- What is the shipping time and shipping Way?
A: After receiving balance of order,we will inform and help you arrange shipment within 10days.
Other Model Equipment Machinery :
Packaging & Delivery
Packaging Details
Sanitary Napkin Machine surface is painting Anti-rust oil
Wrapped by PE Film and packed into Seaworthy Wooden Box .
