Wood Pellet Hammer Mill for Wood Chips

Product Description

Wood Pellet Hammer Mill For Wood Chips

All our Hammer Mill Models :

Name	Model	Power(KW)	Capacity(T/H)
Hammer Mill	AST-ZW36A	22	1-3
	AST-ZW40A	37	3-5
	AST-ZW29C	55	6
	AST-ZW29C	75	8
	AST-ZW38C	90	10
	AST-ZW38C	110	12
	AST-ZW50C	132	16
	AST-ZW60C	160	18
	AST-ZW80C	185	20
	AST-ZW80C	200	25
	AST-ZW100C	220	28
	AST-ZW100C	250	32
Hammer Mill	AST-ZW60B	55	2
	AST-ZW60B	75	3.5
	AST-ZW80B	90	5
	AST-ZW80B	110	7
	AST-ZW100B	132	9
	AST-ZW120B	160	15

1. AST-ZW38C Wood Pellet Hammer Mill For Wood Chips character :
1. It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
2. The design of overall base is high in structural strength and beautiful in appearance.
3. Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
4. Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
5. The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
6. Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
7. The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .

2.AST-ZW38C Wood Pellet Hammer Mill For Wood Chips Technical Parameters :

Model	AST-ZW-29C		AST-ZW-38C		AST-ZW-50C	AST-ZW-60C	AST-ZW-80C		AST-ZW-100C
Rotor diameter (mm)	1120		1120		1120	1120	1120		1120
Spindle speed(rpm)	1480		1480		1480	1480	1480		1480
Linear speed of hammers (m/s)	86.5		86.5		86.5	86.5	86.5		86.5
Pulverizing room width(mm)	290		380		500	600	800		1000
Number of hammers	48		64		96	112	128		192
Power(kw)	55	75	90	110	132	160	185	200	220	250
Normal Air Volume ( M3/min)	55	60	72	78	95	100	120	140	140	160

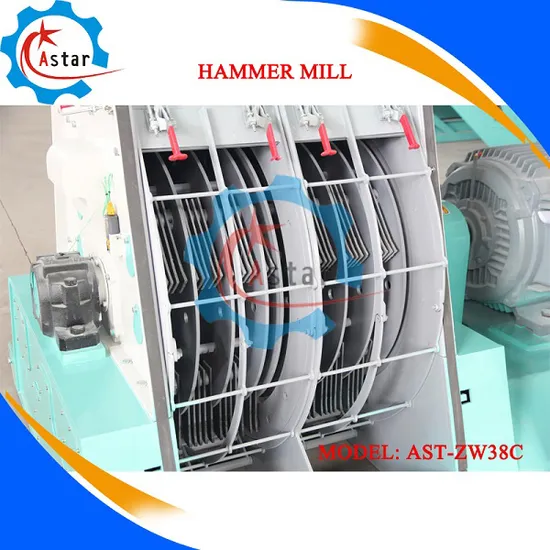

Wood Pellet Hammer Mill For Wood Chips Photos:
Any more information you need AST-ZW38C Wood Pellet Hammer Mill For Wood Chips, please feel free to contact with us.
