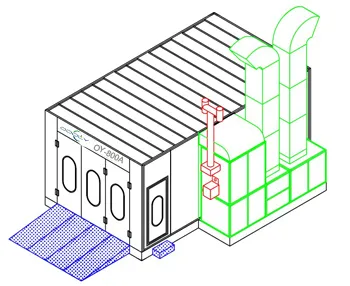

Auto Paint Room Automotive Car Spray Booth

Product Description

China Manufacturer Electrical heating spray booth for painting cars
Product Description

Inside booth	6900X3900X2650mm (LXWXH)
Outside	7120X5400X3400mm (LXWXH)
Metal-base	Type 1: 300mm metal-base, complete gratings, four outside ramps Type 2: 300mm metal-base, complete gratings, inside inclined ramps Type 3: 300mm metal-base, complete gratings, no ramps, base-down Type 4: No raised metal-base
Wall panels	60mm thickness by tongue and groove interlock, 16g EPS insulation
	Double skined by 0.6mm pre-painted steel sheet
Roof panels	0.8mm galvanized sheet
Main door	Three-fold flat door: 3000X2600mm(WXH) with pressure lock All frames by aluminium alloy
Service door	One service door: 2000X800mm(HXW) with pressure lock
Lights	Upper inclined lights,8 units,4X36W each, with specular reflect plate
	Side wall lights, 4 units, 4X36W each, with specular reflect plate
Air generator System
	Air intaking: 1X7.5KW turbo fan with Siemens motor,25000m3/h
	Air exhausting: 1X7.5KW turbo fan with Siemens motor,25000m3/h
	Frames by aluminium alloy ,double 0.6mm pre-painted sheet with rock-wool
	Ductings: 0.8mm galvanized sheet, electrical damper for exhausting
By-pass	Electric damper from spraying to baking cycle
Heating	Big heating exchanger by stainless steel, Italian RG5S oil burner,26000kcal/h
Filter system	Prefilter-----600G ceiling filter----- floor paint-stop filter M filter and activated carbon extraction filter
Control system	spraying, heating spraying, bake timer, indicator lights, hour timer, over temperature alarm, emergency stop, pressure gauge, Siemens contactor, Omron temperature controller etc.

Detailed Photos
Company Profile
ODDLY company belongs to a large-scale automobile enterprise integrating research and development manufacturing, sales and service. The company was founded in October 2016, with 1 million Yuan registered capital, located nears Shanghai seaport, which provides advantages for Importing and exporting trade of the products. The company currently employs more than 20 people, including 2-3 technical personnel, 3-5 international business persons. Our company is with excellent staff, advanced technology, sophisticated equipment, strict management system. Based on this, the company continuously grow and development. "Cooperation, innovation, win-win situation" is our production spirit and service concept. Over the past years, ODDLY has rapidly emerged with its professionalism and proven technology in the field of automobile. In the process of development, the company continues to exchange and cooperation with a number of domestic scientific research institutions, design and production, maintenance and commissioning capacity rapidly improved, the scale continues to expand. With science and technology for development, and constantly provide users with excellent quality, stable performance, convenient and fast, durable automobile equipment, is our constant pursuit. Our products are with best quality and super technical services, and strive to create a world-renowned brand, so that Chines products will be all over the world. Certifications
Packaging & Shipping
Machines in Customers' Shop
