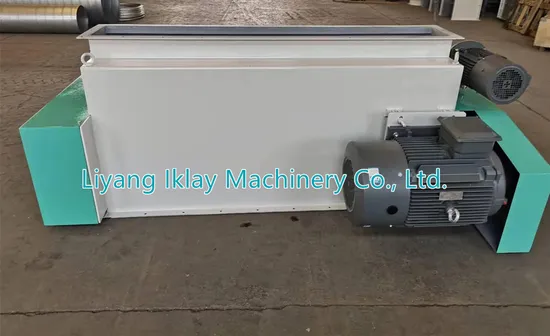

Chicken Crab Shrimp Fish Feed Pellet Roller Crumbler / Feed Pellets Crusher

Product Description

TECHNICAL PARAMETER

Model		Roller Size(MM)		Slow roller	Fast roller speed(RPM)	Power	Capacity	Gross Weight (kg)
		Dia.	Length	speed (RPM)		(KW)	(T/H)
Double Roller	SSLG15X80	150	800	476	725	4	2--4	650
	SSLG15X100	150	1000	476	725	5.5	3--6	750
	SSLG15X150	150	1500	476	725	7.5	5--10	900
Three Roller	SSLG20X170	200	1700	360	470	15	10--15	1200
	SSLG25X170	250	1700	360	470	18.5+1.1	15--20	2100

FEATURES 1. With triple - roller and double- roller structure: With the unique two-roll or three-roll different tooth shape differential speed principle realize the crumbling of pellets from φ1.5~φ6.0mm,which is high rate of finished products,less grade feed back.
2. Differential speed of crushing roller.The ideal crushing effect is achieved by squeezing, shearing and tearing of fast and slow rollers.
3. Unique hopper and bypass device. It not only plays the role of leveling material, but also plays the role of bypass flow for the material that does not need to be broken. When the bypass flow, automatic shutdown can be realized through the travel switch.
4. Narrow V v-belt drive.Smooth transmission, low noise, reliable operation, easy to operate.
5.Operate shunt plate (manual or pneumatic). Can make material does not need to be broken direct flow.
MORE PHOTOS AND DETAILS
SPARE PARTS (Feed crumbler rollers / rollers for feed crusher crumbler)
DELIVERY
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.


1. Project Investment Analysis:
According to customer needs, formula, production capacity and etc, IKLAY gives customers detailed display of each equipment of the complete production line, quotations, and designs the most suitable production line for customers.
2. Finish whole process from order to delivery:
IKLAY meets the needs of user with excellent whole process management, from the material procurement, manufacturing, quality inspection and test machines before delivery, process assurance to tracking of the process, which provide quality and security for customer.
3. Installation training:
We not only send engineers to the customer site for guidance, installation, commissioning, trial operation and formal operation, but also train operators to ensure stable and safe operation of the production line.
4. Regular return visits:
Regular visits and contacts with customers are used to know customers' use of products, listen to customers' opinions, and provide timely services for customers with quality problems.
