Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System

Product Description

Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System Product Description

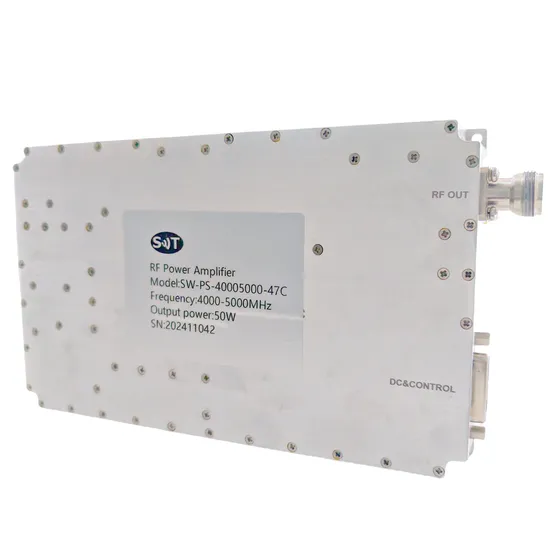

The 4000-5000 MHz RF power amplifier is a high-performance device designed to operate within the 4-5 GHz frequency range, delivering up to 50W of output power. It is widely used in applications such as wireless communication systems, radar technologies, electronic warfare, and testing scenarios, meeting the needs of high-frequency and moderate-power applications.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	4000		5000	MHz
Oeration mode	Sweep frequency source
P-sat Power Output	46.5	47		dBm
Power Gain Flatness		±2.5		dB
Input VSWR			2
Operating Voltage		28		VDC
In-Out impedance		50
Current		8		A

MECHANICAL
PARAMETER	VALUE	UNIT
Dimensions (L x W x H)	200x120x30	mm
RF Connectors (Input / Output)	N- KFD	--
DC / Control Connector	D SUB 7W2	--
Cooling	Consider heat dissipation with the system	--
Mounting	3-6 Thru Hole	--
Weight	≤1.5	kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-40	+60	°C
Humidity Range	0-100		%
PA Baseplate Shutoff Temperature	+ 90		°C

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:			D SUB 7W2
TRIAD CABLE PART NUMBER:			--
PIN NUMBER	LABEL		DESCRIPTION
A1		+VDC	+28V
A2		GND	Ground
1-2		NC	NC
3		RS485A	Gain Control and Seep speed Control
4		RS485B
5		GND

Outline Dimensional Drawing
