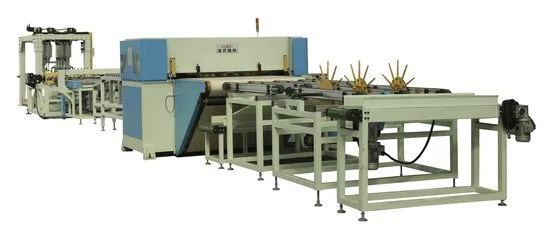

2020 Lvt/Spc Rubber Vinyl PVC Plank Plastic Gym Flooring Tile Cutting Machine

Product Description

2020 LVT/SPC Rubber Vinyl PVC Plank Plastic Gym Flooring Tile Cutting Machine
Use and character
It is suitable for cutting all kinds of floor & wall decorative materials ( such as EVA floor , PVC anti-static floor , asphalt floor , rubber floor , carpet and so on ) into large pieces of finished product batch production .
1.PLC touch screen program control , it has two kinds of cutting die setting mode ( automatic and manual ) for optional ;
2. The operation is labor-saving and simple, with low malfunction, strong cutting force and high cutting
speed.
3. Equipped with automatic pick-up device , it can save the worker labor and enhance the working efficiency ;
4. Equipped with wo Red-ray location device , it is helpful to put the board on the accurate place on cutting area ;
5. We can make the special available worktable size as per customer's need and install the water cooler as per customer's request ;
Technical specification

Maximum cutting force	150T /200T
Travel adjustment range	0-200mm
Range between the working tables	80-280mm
Size of the upper pressing board	1680× 1100mm
Size of lower worktable	1680× 1120mm
Motor power	11kW/15Kw
Overall dimension	2380× 1850× 1900mm
Total weight	6000KG

Special cutting mold :
Machine applicable Range :
Relative machines :
Factory views :
Attending Fairs :
Customer's visiting :
Shipment :
