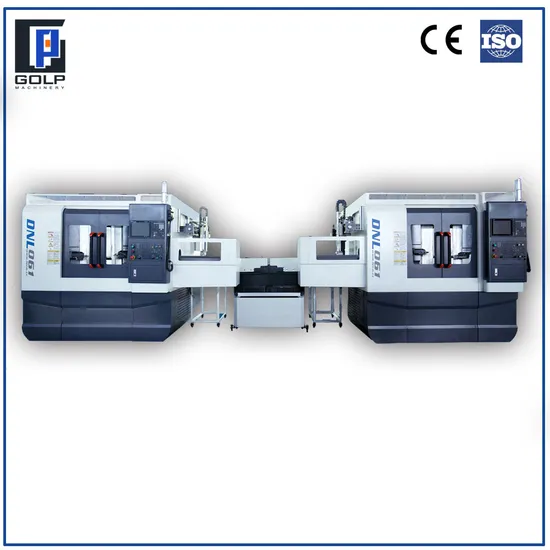

Double Heads Dual Two Spindle CNC Automatic Shaft Metal Turning Lathe for Mine Drill Bit

Product Description

Full-function lathe, double head lathe and double spindle lathe devel-oped to better suit the production line due to the need to provide com-prehensive solutions.
An ideal choice for large-scale production and high-precision requirements, helping enterprises gain a leading position in the fierce market competition.
Δ Automated production line, automatic loading and unloading, all-weather work, improve work efficiency, save labor costs; for large quantities of metal pipe and shaft parts processing, reduce production costs, and is conducive to the further development of the market.
Δ Simultaneous machining of two heads in one clamping;
Δ Good efficiency and high precision;
Δ Machine characteristics Vertical integral frame bed, good rigidity;
Δ Independent row of cutters, retractable tools;
Δ Dual-channel controller, left and right synchronized operation:
One-to-Two Automated Machining Line
Automatic loading and unloading storage system
Machining workpiece automatic line gripper

Item	DNL061	DNL062
max body rotate diameter	Ф200 mm	Ф200 mm
clamping diameter scope	Ф15-Ф50 mm	Ф15-Ф50 mm
turning length scope	100-300 mm	300-480
spindle clamp diameter	Ф50 mm	Ф50 mm
X/Z travel	280/180 mm	280/180 mm
X/Z fast speed	18/24 m/min	18/24 m/min
fool type	cutter	cutter

Other DNL061 Automation for integrated solutions
1. Single automation For long shaft / core
click above for details.

2. Double-head lathe + oblique lathe Automation line
Automatic & connect line
3D animated simulations.
Tool Inspection System: Customized to Boost Machine Utilization, An Essential Choice
Example
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
