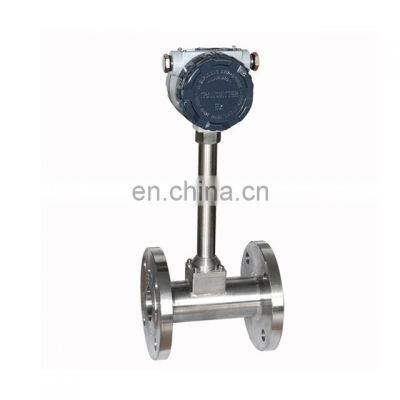

Taijia High quality flowmeters Smart lpg gas flow meter compressed air vortex flow meter flowmeter

Product Description

Product Description
Smart lpg gas flow meterContact usOur AdvantagesDALIAN TAIJIA TECHNOLOGY CO.,LTDAlways happy to help!NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial web:OEM(Design and print your brand)18 months' quality guaranteeAll life maintainStrong technical support24 Hours online services 1.Technical Informations Application range(1)Gas;(2)Liquid;(3)SteamAmbient temperatureStandard(with aluminum converter housing): -10~+55 cFlow meter accuracyFor Liquid:1.0% of rateFor gas and steam:1.5% of rateReference conditionsFlow conditions similar to EN 29104Medlum:Water/GasElectrical conductivity:≥300μs/cmTempeature:+10…30℃+50…+86℉Inlet section:≥10DNOperating pressure:1 bar /14.5 pslgModular constructionThe measurement system consists of a flow sensor and a signal converter. It is available as compact and as separate version.ConnectionFlange: DN15-DN300Wafer: DN15-DN300MaterialsSensor hosting:SS304; Other materials on requestFlange Connection: SS304Wafer Connection Mating(Flange: Carbon Steel)Converter Housing Standard: polyurethane coated die-cast aluminumPrimary measured valueFlow RateSecondary measured valueVolume flow;(Pressure and Temperature is available for model with compensation)InstallationTake care that flow sensor is always fully filledFlow directionForwardArrow on flow sensor indicates flow direction.Inlet run≥10DNOutlet run≥5DNMeasurement ratioStandard–10:1 2.Measuring digital air flow meter gas flow meters Range Nominal DlameterLiquidGas(mm)(In)Flow(m3/h)Flow(m3/h)151/2”1.2 to 6.25 to 25203/41.5 to 108 to 50251”1.6 to 1610 to 70401-1/2”2.5 to 2522 to 220502”3.5 to 3536 to 320652-1/2”6.5 to 6550 to 480803”10 to 10070 to 6401004”15 to 150130 to 11001255”25 to 250200 to 17001506”36 to 380280 to 22402008”62 to 650580 to 496025010”140 to 1400970 to 800030012”200 to 20001380 to 11000 3.Dimensions 4.Display for digital air flow meter gas flow meters 5.How to install a flow meter 6.flow meter ApplicationsStress-type flow meter is a speed flow meter, widely used in petroleum, chemical,power, light industry, power, heating and other industries. 7. In order to help you get the exact model, pls offer the following necessary info: 1. The pipe size is DN___mm or ___inch . 2. The medium is _____. 3. Medium temperature is _____ °C. 4. The pressure in pipe is _____Mpa. 5. The connection type is _____.(Flange or Wafer or others) 5. Other requirements :_____.(Like output,power supply,temperature and pressure compensation) If you have any query, pls feel free to contact me. 8. Simlar product recommandation:Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
