Rubber Kneading Mixer 2020 New

Rubber Kneading Mixer 2020 New

US$50,000.00-1,500,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
S Series
Application Area
Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Forced
Warranty
12 Months
Working
Shear Mixer
Rotors
Tangential/ Intermeshing/Customized
Volume
35-410L
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Lanhang
Model Number
Lh-145y
Voltage
Customized
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Main Motor Power
160-2500kw
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wooden
Specification
ISO9001: 2000
Trademark
lanhang
Origin
China
HS Code
84778000
Production Capacity
30 Sets/Year

Product Description

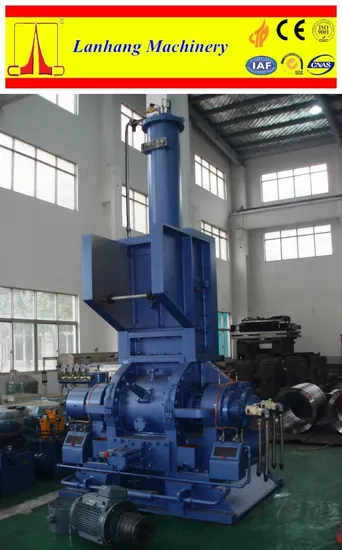

Banbury Mixer (Plastic & Rubber)
Application of Our Banbury Mixer
It's suitable for plastic and rubber mixing. The mixing chamber adopts special left-middle-right structure which makes maintenance easy.

Advantages of Banbury mixer:
1. Intermeshing or tangential rotor;
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC);
3. Pneumatic / hydraulic type top mounted hammer;
4. Inverted AC motor / variable speed DC motor;
5. Copper-ring and hydraulic sealing;
6. 2-wing, 4-wing, 6-wing are available;
7. Excellent dispersing effect;
8. Best mixing rotor and chamber to guarantee 100% mixing effect;
9. Low noise, safe mixing;
10. Maintenance friendly and long-life service

1. Banbury mixer for rubber:

Items
LX-75L
LX-100L
LX-120L
LX-160L
LX-190L
LX-255L
LX-270L
LX-410L

Total chamber volume(L)
75
100
120
160
190
255
270
410

Useful chamber volume (L)
50
80
100
120
140
115
188
319

The main rotor speed(rpm)
40
40
40
40
40
4-40
6-60
4~40
6~60

The rotor speed ratio
1:1.17
1:1.17
1:1.17
1:1.17
1:1.17
1:1.17
1:1.17
1:1.17

Max capacity (T/H)
1.25
1.6
1.95
2.64
2.85
4.6
4.6
7.4

Motor power (KW)
160
220
310
355
870
1500
1250
2X1250

Weight(T)
20
24
26
26
30
55
55
76



2. Banbury mixer for plastic:

Project\Model
S-75L
S-100L
S-120L
S-160L
S-255L
S-270L
S-410L

Working capacity of mixing chamber(L)
75
100
120
160
255
270
410

Rotating speed of rear rotor(r/min)
40
40
40
40
40
40
40

Main motor power(kw)
160
220
300
400
1100
1250
2500

Pressed of compressed air(MPa)
0.6
0.6
0.6
0.6
0.58
0.58
0.62

Weight(t)
20
22
28
32
55
60
76


Intermesh Rotors (high mixing effects)

Model
LH-100Y
LH-145Y
LH-200Y
LH-250Y
LH-330Y

Chamber Volume (L)
100
145
200
250
330

Filling Coefficient
0.65

Rotor Speed (r/min)
10-60

Rotor Speed Ratio
1:1.17

Max. Capacity (T/H)
1.36
2.2
3.05
4.2
5.0

Motor Power (Kw)
520
720
1100
1320
1700

Dimension (m)
6.6x2.8x4.4
7.5x3.1x5.5
8.1x3.5x5.4
8.2x3.8x5.5
10.0x4.7x6.6

Weight (T)
19
29
48
65
80
