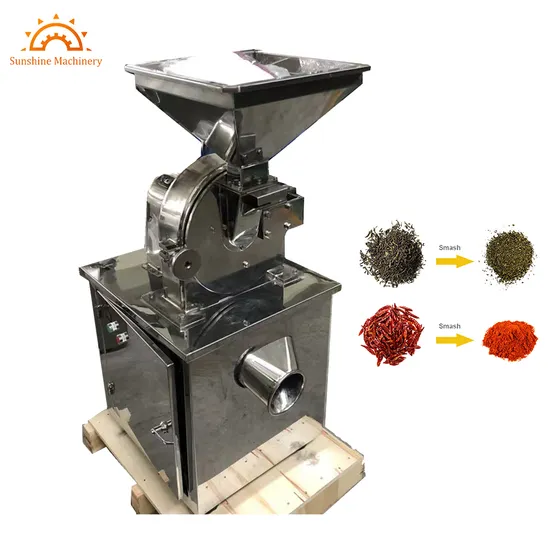

Fl-250 CE Quality Stainless Steel Industrial Coffee Grinder
| US$2,600.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FL-250
Type
Surface Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
White or Brown
Power
4kw
Capacity
60-150kg/H
Production Time
2 Days
Package
Wooden Case
Function
Crush Corn, Sorghum, Wheat, Beans, Crushed Cake
Shipment
by Fast Ship
Model
Fl-250
Dimension
550*420*1400
Weight
200kg
Transport Package
Wooden Case
Specification
ISO9001, CE, SGS, BV
Trademark
sunshine
Origin
Henan, China
HS Code
8479820090
Production Capacity
1000 Sets Per Month
Product Description
FL-250 CE quality stainless steel industrial coffee grinderMain Function:
This machine is widely used in crushing of the pharmaceutical, food, chemical industry materials crushed. FL cooled mill is designed to improve the well-developed from a new generation of grinder machine is mainly used in chemical, dyes, additives, feed my company in the pulverized material accumulated by the insurance and China's actual conditions , smashing processing, fineness food, medicine, wood, fiber and non-metallic ore and other low hardness material adjustment between 20-120 mesh, high yield, fine grain size, low noise, low power consumption, simple maintenance, installation and easy, especially for oily, sticky, heat-sensitive, fibrous: smashing processing (eg ginger, chili, pepper, oil, wheat, soy almonds, anise, cinnamon) and other low-high hardness materials.
Features:
Crushing chamber uses wind wheel type high speed rotary cutters, so that the chamber's own air volume is big, not easy to heat chamber machine. It has a smooth running, easy to disassemble and clean, low noise, and good crushing effect and so on.
Work Theory:
The machine uses the wind wheel type high speed rotary cutters and the fixed cutters to crush, cut grinding, chamber will produce a strong airflow in the crushing, the heat and finished in the crushing chamber flows out together through the screen, particle size will be obtained by replacing the screen.
Technical parameters:
| Model | FL-150 | FL-250 | FL-350 |
| Capacity(kg/h) | 10-20 | 60-150 | 100-300 |
| Feeding particle(mm) | 12 | 12 | 12 |
| Particle size(mesh) | 20-120 | 20-120 | 20-120 |
| Power(kw) | 2.2 | 4 | 5.5 |
| Rotation speed(rpm) | 3800 | 3800 | 3800 |
| Dimension(mm) | 500×420×880 | 550×420×1400 | 700×600×1650 |
| Weight(kg) | 85 | 200 | 300 |
| Price(FOB QINGDAO) | 2620USD | 3180USD | 4080USD |
Configuration
| No. | Name | Specification | Supplier | Qty. |
| 1 | Motor | kw | Kaicheng | 1 set |
| 2 | Electric control part | Chint | 1 set | |
| 3 | Grinder chamber | Stainless steel 304 | Made locally | 1 piece |
| 4 | Grinder frame | Stainless steel 304 | Made locally | 1 piece |
| 5 | Grinder structure | Rotation blades | Made locally | 1 set |
| 6 | Materials | Stainless steel 304 | ||
| 7 | Grinder process | Polishing process | Made locally | Whole machine |
| 8 | Main spindle | 45#steel | Made locally | 1 piece |
| 9 | Bearing | 6208 | Harbin | 2 pieces |
| 10 | Sieve net | Stainless steel 304 | Made locally | 1 piece |
| 11 | Sieve ring | Stainless steel 304 | Made locally | 1 set |
