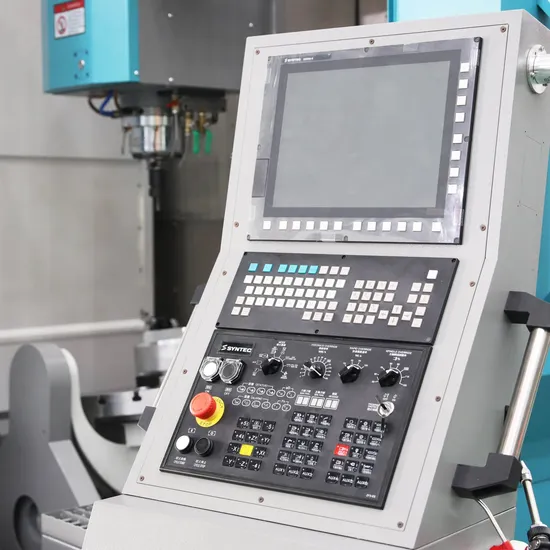

Closed-Loop Control CE Approved CNC Milling Machine Vertical Machining Center Kdu650V
| US$198,836.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDU650V
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
650mm
Spindle Bore Taper
Bt40
Spindle Speed
12000rpm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
10 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | KDU650 |
| TRAVEL | |
| X axis | 700mm |
| Y axis | 450mm |
| Z axis | 400mm |
| Spindle end to table | 200-600mm |
| Table size | Ф650m |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 15kw |
| Spindle speed | 12000rpm |
| Driving type | Direct type |
| FEED | |
| X/Y/Z fast feed | 24/ 24/ 24m/min |
| B axis swing angle | ±110º |
| C axis swing angle | 360º |
| B axis max speed | 50rpm |
| C axis max speed | 100rpm |
| ATC | |
| Tool number | 24 |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| ACCURACY | |
| Repeatability accuracy(X/Y/Z) | 0.006mm |
| Repeatability accuracy(B/C) | 4 sec |
| Position accuracy(C) | 20 sec |
| OTHERS | |
| CNC controller | SIMENS 840D SL |
| Net weight | Around 11000kg |
| Dimension (LxWxH) | 5300x2650x3100mm |
