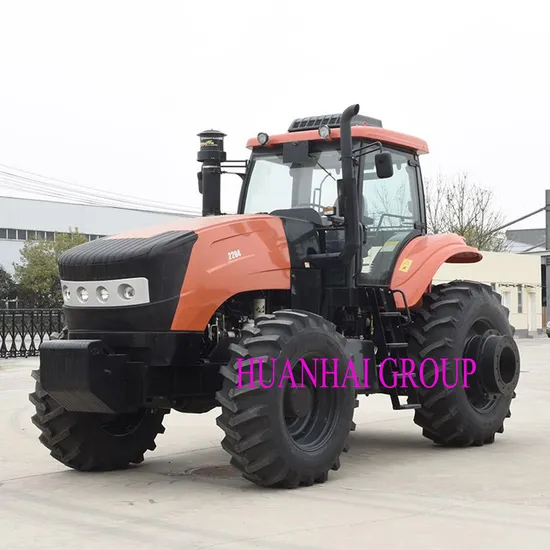

100HP 150HP 200HP 240HP Farm Tractors
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry, Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery, Dry Cultivating Machinery
Power Source
Diesel, Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation, Soil Preparation Machinery
Traction Type
Traction, Traction
Drive Type
Gear Drive, Gear Drive
Arbor Configuration
Vertical Shaft, Horizontal Axis
Certification
ECE, CE, ISO, CE
Color
Red, Red
Warranty
1 Year, 1 Year
After-Sales Service
1 Year
Usage
Farm Tractor, Garden Tractor, Lawn Tractor
Drive Wheel
4WD
Emission Standard
Euro III
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Condition
New
Advantage
Price
Transport Package
Seaworthy Packing
Specification
ISO, CE
Trademark
huanhai
Origin
Shandong, China
Production Capacity
20000 Units Per Year
Product Description
Tractor model: LT404Pattern: 4 x 4 (four-wheel drive)
Dimensions: 3514 x 1750 x 2130mm
Spread of axies (mm): 1924
Front wheel tread (mm): 1250
Rear wheel tread (mm): 1200-1500 (commonly used 1300)
Smallest gully (mm): 325
Agronomy gully (mm): 375
Changes radius (mm): Unilateral brake: 3.4
Unilateral does not apply the brake: 4.1
Structure quality: 1890
Smallest use quality: 2080
First disposes: 144
Latter disposes: 360
Fixed force of traction (KN): 12
Engine model: 490BT
Demarcation power (KW): 29.4
Coupling: 10 inch dry list function or double-acting
Gear box: 4 x (2 1) keeps off the composition type meshing wrap to shift gea
Speed range: 2.4-31.9
Central rotation: Screw round bevel gear pair
Differential device: Two planetary gears, closed type
Differential lock: Plug type
Final transmission: Planet gear type
First driving axle
The entire seal bevel gear type (four-wheel drive type uses)
Transfer case
The straight tooth cylindrical gears (four-wheel drive type uses)
Front wheel tire specification: 8.3-20
Trailing wheel tire specification: 12.4-28
| Model | 504 | 554 | ||
| Overall dimension(LxWxH) | 3770X1620X2130 | 3875X1635X2145 | ||
| Wheelbase(mm) | 1990 | 2010 | ||
| Front-wheel tread(mm) | 1265 | 1265 | ||
| Rear-wheel tread(mm) | 1200~1500 | 1200~1500 | ||
| Min. Ground clearance(mm) | 330 | 330 | ||
| Min. Turning radius(m)(not apply the brake with single side) | 4.3 | 4.3 | ||
| Gear(front/rear) | 12/12 (8/4 8/8 optional) | 12/12 (8/4 8/8 optional) | ||
| Speed range(forward/backward) | 34.02-2.55/ 29.82-2.24 | 34.02-2.55/ 29.82-2.24 | ||
| engine | Model | A498BT-6A | A4K41T55-002 | |
| type | In-line,water-cooling,four stroke | |||
| power | 36.8 | 40.4 | ||
| R o tating speed | 2400 | 2400 | ||
| Specific fuel consumption(g/kW@h) | ≤245 | ≤245 | ||
| Tire size(front/rear) | 8.3-20/13.6-28 | 8.3-20 /13.6-28 | ||
| Hydraulic lift capacity(kN) 610mm from suspension point | 8.28 | 9.1 | ||
| Driving output axis type | Postposition,semi-independent | |||
| Driving output axis turning speed(r/min) | 540/760,or 540/1000 optional | |||
