Reliable China Pege Automatic Cutter for Quick Rubber Strip Processing

Product Description

Unveil the extraordinary prowess of our Rubber Cutter Machine, masterfully engineered to deliver top-notch precision in rubber strip cutting. Embrace excellence with every slice.

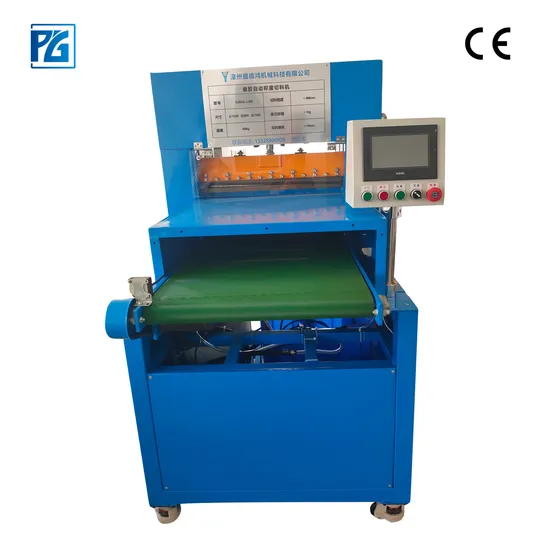

Machine Picture
Main Features The Numerical Rubber Cutting Machine is meticulously equipped with a renowned brand PLC, ensuring impeccable precision and lightning-fast response times, setting the standard for innovation. Our cutting-edge feeding system is powered by a high-end branded servo motor, celebrated for its remarkable precision, stability, and durability. Experience a feeding precision of ±0.1mm, and for cut lengths under 20mm, a weighing precision of ±0.2g, promising unrivaled performance. The main power is driven by a robust 3-phase slowdown brake motor, delivering powerful performance and unmatched safety standards. Integrated with imported fiber sense positioning components, our machine combines precision with durability, providing an unmatched cutting experience. Harnessed by a chain belt system, it seamlessly slices through FKM sheets with a hardness rating reaching up to 90ºC with exceptional ease and efficiency. The intuitive 7-inch HMI touch screen is designed with automatic counting, monitoring, and alert notifications, delivering effortless operation and enhanced user convenience. An advanced brand inverter expertly manages the cutting speed, allowing for immediate adjustments, maximizing operational efficiency. Our strip outlet mouth features a sophisticated safety door device with a dual-step protection system to ensure the highest level of operational safety. The automatic material press system is designed to significantly reduce operator workload, offering both convenience and efficiency. Outfitted with resilient Tungsten steel W18 blades, our cutting blade guarantees remarkable durability and an extended cutting lifespan. With a sleek bevel cut design, the cutting blade is crafted to minimize resistance, amplify speed, and ensure the upper and lower blades work in perfect harmony to minimize abrasion. Our models can be elegantly customized with slitting cutters for both horizontal and vertical rubber sheet cuts. The slitter cutter blades are engineered for easy replacement and maintenance, simplifying your workflow.. The oil lubricant system is equipped with an automatic electromagnetic pump, minimizing interruptions and ensuring seamless automatic oil refills. Our cutting-edge design and advanced manufacturing techniques result in a CNC rubber cutting machine that is both user-friendly and exceptionally efficient.Effortlessly adjust any length or cutting speed during operation via the intuitive touch screen interface. Product Parameters

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-HA-600	PG-HA-800	PG-HA-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

Applications:
Meticulously engineered to cut rubber sheets into strips with unmatched speed and efficiency, elevating your production capabilities.
