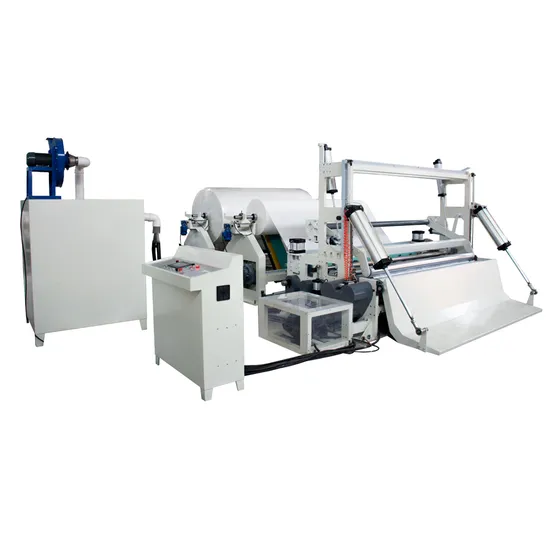

Raw Jumbo Roll Slitting Machine Paper Cutting Machine

Product Description

Product Description CIL-WW-A
High Speed Jumbo Roll Paper Slitting Rewinding Machine
Functions and features:
This equipment is to be slitted and rewinded into paper winds according to the number of paper layers to fold tissue, handkerchief paper, boxed tissue. According to the need, the type of slitting paper may be adjustable, It has the feature of tight structure, easy operation, stable operation, which is the ideal equipment to fund paper-making factory and paper processing factory. Product Parameters

Model	1200A	1800A	2000A	2400A	2600A	2800A
Jumbo roll	1150mm	1750-1800mm	1950-2000mm	2350-2400mm	2550-2600mm	2750-2800mm

1. Original Paper Dimension: Dia.: 1500, width: 1200-2800 (mm)
2. Rewinding paper: Dia 1200, width: 40~1200 -2800(mm)
3. Production Capacity: 0~200 m/min
4. Slitting-type specification (mm): Blade: 105*70*1.2
Hammering wheeles: 150x108x15
5. Power: 11.5Kw
6. Outside Dimension: 4000x2540x1500 (mm) (L*W*H)
7. Weight: 5T FAQ 1. What is the purpose of the Bobbin Paper Roll Slitting Rewinding Machine?
- The Bobbin Paper Roll Slitting Rewinding Machine is designed to efficiently cut and rewind paper rolls into smaller, more manageable sizes.
2. How does the paper cutting machine work?
- The paper cutting machine utilizes advanced technology to slit and rewind paper rolls. It operates by feeding the paper roll through the machine, where it is precisely cut into desired widths and then rewound onto separate bobbins.
3. Can the Bobbin Paper Roll Slitting Rewinding Machine handle different types of paper?
- Yes, the Bobbin Paper Roll Slitting Rewinding Machine is versatile and can handle various types of paper such as kraft paper, tissue paper, and cardboard.
4. What are the key features of the Bobbin Paper Roll Slitting Rewinding Machine?
- The key features of the Bobbin Paper Roll Slitting Rewinding Machine include high precision cutting, adjustable cutting widths, automatic tension control, and user-friendly controls for easy operation.
5. Is the Bobbin Paper Roll Slitting Rewinding Machine suitable for large-scale production?
- Absolutely! The Bobbin Paper Roll Slitting Rewinding Machine is designed to meet the demands of both small and large-scale production. Its efficient and reliable performance ensures increased productivity and cost-effectiveness.
