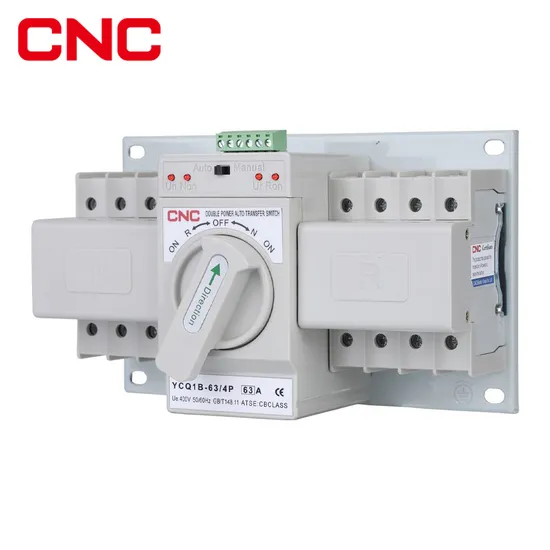

Ycq1b-4p Manual/Automatic Dual-Use ATS 25A 40A 63A 4p Automatic Transfer Switch
Basic Info.
Model NO.
YCQ1B-4P
Operation
Electric
Certification
CCC, CE, ISO9001
Type
Dual Power Automatic Switch
Poles
4P
Output type
Dual
Working Frequency
50Hz/60Hz
Rated Voltage
AC400V
Operating Voltage
AC220V
Product Size
150*138*115mm
ATS Level
CB
Current Specifications
10A-63A
Conversion Method
Self-Return
Operation Method
Automatic and Manual
Standards Compliant
IEC60947-6-1
Rated Current
10A 16A 20A 25A 32A 40A 50A 63A
Transport Package
CNC
Specification
YCQ1B-4P
Trademark
CNC
Origin
China
HS Code
8536200000
Production Capacity
10000/Day
Packaging & Delivery
Package Size
60.00cm * 35.00cm * 50.00cm
Package Gross Weight
20.000kg
Product Description
Our Services
Product Description
General The dual power automatic switch is used to switch between two power sources. It is divided into common power supply and standby power supply.
When the common power supply is powered off, the standby power supply will be used.
When the common power supply is restored, it will be used again then, if you do not need automatic switching in special circumstances, you can also set it to manual switching (this type of manual / automatic dual-use, arbitrary adjustment).
| Type | YCQ1B-63 |
| Working frequency | 50Hz/60Hz |
| Rated voltage | AC400V |
| Operating Voltage | AC220V |
| Standards compliant | EC60947-6-1 |
| Product Size | 2P:150mm×138mm×115mm 3P:185mm×138mm×115mm 4P:220mm×138mm×115mm |
| Operation method | Automatic and manual |
| ATS level | CB |
| Conversion time | ≤2s |
| Current specifications | 10A-63A |
| Conversion method | Self-return |
