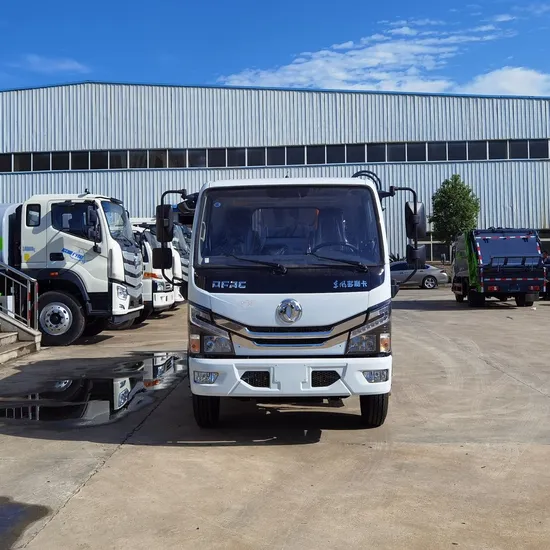

Compact 5800L Dongfeng Compressed Garbage Truck for Urban Waste Management
Basic Info.
Model NO.
CLW5073ZYSD6
Type
Compactor
Certification
ISO9000, CCC
Volume
3001-6000L
Emission Standard
Euro 6
Transmission Type
Manual
Payload
4.5t
Fuel
Diesel
Drive Wheel
4×2
Brand
Dongfeng
Models
Small
Usage
Compression Type
Condition
New
Power
130HP
Load Capacity
4.5t
Emission Standar
Euro 6
Seats
3
Transport Package
by RO-RO Ship
Specification
6763× 2250× 2660
Trademark
CLW
Origin
Hubei China
HS Code
8704223000
Production Capacity
5000 Units/Year
Product Description
Product DescriptionCompressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, mainly used for urban sanitation operations, aiming to improve the efficiency of garbage treatment and reduce space occupation during transportation. Its design has three functions of garbage compression, storage, and transportation, which can load more garbage in the same volume, reducing transportation frequency and operating costs.
Detailed Photos
Product Parameters
| ITEM | PARAMETER | UNIT | DATA |
| Whole Vehicle | Vehicle Model | CLW5073ZYSD6 | |
| Overall Dimensions | mm | 6763×2250×2660 | |
| Curb Weight | kg | 5700approximate | |
| Rated Load | 5200approximate | ||
| Volume | L | 7000pproximate | |
| Front/Rear Hanging | mm | 1055/2052 | |
| Approach/Departure Angle | ° | 28/12 | |
| Leaf Spring | pcs | 6/6+5 | |
| Drive Wheel | 4*2 | ||
| Chassis Model | EQ1075SJ3CDF | ||
| Manufacturer | Dongfeng Motor Group Co., Ltd | ||
| Wheel Base | mm | 3308 | |
| Tire Specification | inch | 7.00R16 14PR | |
| No. of Tires | pcs | 6+1 spare | |
| Engine | Engine Type | CA4DB1-13E6 (Euro VI) | |
| Manufacturer | China FAW Group Co., Ltd | ||
| Engine Horsepower | hp | 130 | |
| Displacement | ml | 2207 | |
| Emission Standard | Euro VI | ||
| Gearbox | No. of Gears | Manual 6-speed with overdrive | |
| Cab | passengers | 2 | |
| steering wheel | LHD | ||
| ROW | Single row | ||
| Other | Electric air conditioning, regular air filter, metal bumper, large capacity battery, Dongfeng logo | ||
| Equipment | Garbage bin volume:7000L | ||
| Hydraulic system control: manual control | |||
| Garbage loading method: rear hanging bucket flip frame (hanging 240-liter garbage bin). | |||
| Sewage tank capacity: 100L+100L | |||
| Material of garbage bin: manganese steel | |||
| Thickness of garbage bin:Bottom plate:5mm;side plate: 4mm; top plate: 4mm | |||
| Body exterior color: customizable according to customer requirements | |||
