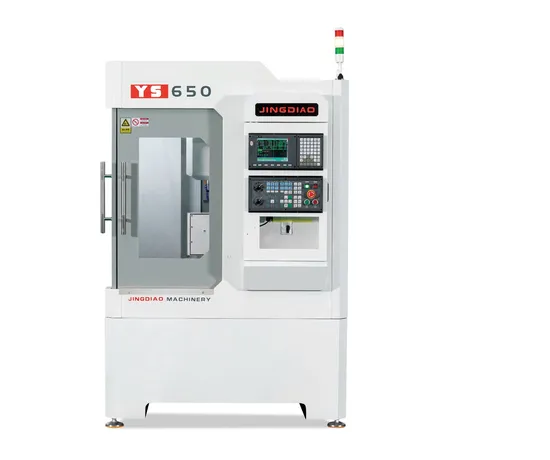

Drilling/Tapping/Milling Mini Vertical Lathe Machine for Processing Metal Tools and Accessories
Basic Info.
Model NO.
JD-540
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
X-Axis Travel
400mm
Z-Axis Travel
200mm
Y-Axis Travel
500mm
X-Axis Fast Moving Velocity
35m/Min
Y-Axis Fast Moving Velocity
35m/Min
Various Cutting Suggested Speeds
10m/Min
Spindle Taper
Bt30
Atc
8
Transport Package
Wooden Case
Specification
1540*1540*2350mm
Trademark
neoronko
Origin
Guangdong China
HS Code
8457101000
Production Capacity
500
Product Description
| Application scope of processing | Normal Use Value | Maximum Value | |||||||
| processing capability | maximum drilling diameter(mm) | Aluminum ф 14 / steel ф 10 | Aluminum ф 18 / steel ф 14 | ||||||
| maximum tapping diameter(mm) | Aluminum m10 / steel m 8 | Aluminum m 12 / steel m 10 | |||||||
| Maximum milling cutter diameter (mm) | ф60 | ф100 | |||||||
| speed of spindle | 5000 rpm | Optional 9000rpm/30000rpm | |||||||
| taper hole of spindle | BT30 | ||||||||
| Tool magazine capacity | 6 | 8 | |||||||
| repeated positioning accuracy | 0.01 mm | 0.01 mm | |||||||
| Surface engraving accuracy | ±0.06 | Optional ±0.01 | |||||||
| workbench | Distance from table to spindle end | 150mm | 350mm | ||||||
| Effective stroke of countertop | 500*400mm | ||||||||
| Travel | X-axis | 400mm | |||||||
| Y-axis | 500mm | ||||||||
| Z-axis | 200mm | ||||||||
| Feed | X-axis fast moving velocity | 25m/min | 35m/min | ||||||
| Y-axis fast moving velocity | 25m/min | 35m/min | |||||||
| Z-axis fast moving velocity | 20m/min | 25m/min | |||||||
| Various cutting suggested speeds | 8m/min | 10m/min | |||||||
| Spindle | Spindle power | 2.6kw | Optional 3.9kw/4.5kw | ||||||
| Spindle type | Mechanical spindle | Optional motorized spindle | |||||||
| Spindle taper | BT30 | ||||||||
| Dimensional & weight | Dimensions | 1350×1050×2050 mm | |||||||
| Weight | 1900KG | ||||||||
| Machine tool specifications and component items | ||||||||
| Specification | Parameter | Optional | ||||||
| Guide rail | Taiwan Hiwin 25 Linear guideway | |||||||
| Ball screw | Taiwan 25 ball grinding precision | |||||||
| CNC Control System | HUAZHONG | SYNTEC/GSK | ||||||
| Optional 4 axis center height | 125mm/170mm | |||||||
| Optional 4 axis motor power | 0.75kW/1.2kW | |||||||
| Optional 4 axis system | HUAZHONG | SYNTEC/GSK | ||||||
| Optional 4 axis servo | HUAZHONG | SYNTEC/GSK | ||||||
| Optional 5 axis center height | 160mm | |||||||
| Optional 5 axis motor power | 0.4kW/0.75kW | |||||||
| Optional 5 axis system | HUAZHONG | SYNTEC/GSK | ||||||
| Optional 5 axis servo | HUAZHONG | SYNTEC/GSK | ||||||
