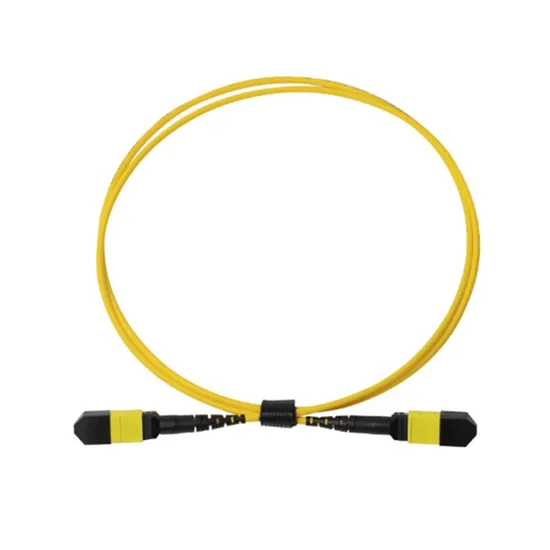

Connector FTTH Indoor Outdoor of MPO Products Fiber Optic Patch Cord

Product Description

ZSINE OFC Data Center Solutions Series of MPO products Fiber Optic Patch Cord We are professional fiber optic cable manufacturer.
Welcome to go to the factory !
Send message to our can get free samples.

Our offers a wide range of patch cords, designed and manufactured for demanding network applications.
It comprises of multi-mode and single-mode. Both ends are terminated with a high performance hybrid or single type connector comprising
of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex.
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode
optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% pre-terminated and tested in factory to ensure transfer performance
. Reduction of installation time
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
. PC, UPC, APC connectors type available
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
. Using standard LC, SC, ST, FC connectors, supporting simplex or duplex
. Position A/Position B markings

Performance
Insert loss (dB)		Return loss (dB)		Tensile strength (N)	Testing wavelength (nm)		Installation temperature
Single mode	Multi mode	Single mode	Multi mode	>70	Single mode	Multi mode	-20ºC~+75ºC (-4ºF~+167ºF)
≤0.3	≤0.2	≥45	≥25		1310/1550/1490/1625	850/1300
