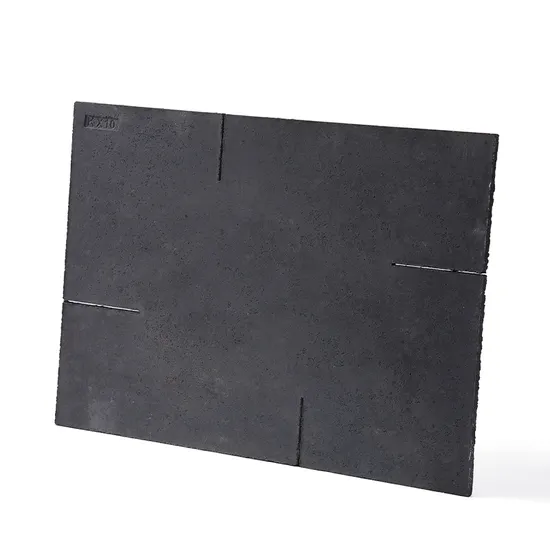

Refractory Kiln Furniture Sic Silicon Carbide Plate for Furnace

Product Description

Product Description Graphite crucible is bowl ceramic with deep bottom, they are made of different content of silicon carbide particles added into the graphite crucible, such as a silicon carbide content of 50%, 24%, etc by fundamental of isostatic compaction technology.
It is new generation of silicon carbide graphite crucible adopted high-grade refractory material and formula. According to application, there are special silicon carbide crucibles for melting copper,aluminum,zinc oxide, zinc, and tin.
Advantages of graphite crucibles:
1. High temperature resistance:Graphite crucibles can withstand extremely high temperatures, up to 3000°C, and are suitable for high-temperature smelting and heat treatment.
2. Good thermal conductivity:Graphite has excellent thermal conductivity, can quickly and evenly transfer heat, improve heating efficiency and reduce energy consumption.
3. Strong thermal shock resistance: Graphite crucibles are not easy to crack under rapid temperature changes, and are suitable for occasions with frequent heating and cooling.
4. High chemical stability:Graphite has good corrosion resistance to most acids, alkalis and salts, and is suitable for smelting a variety of metals and alloys.
5. High mechanical strength: Graphite crucibles still maintain high mechanical strength at high temperatures and are not easy to deform or damage.
6. Long service life: Graphite crucibles have a long service life and good economic efficiency due to their high temperature resistance, corrosion resistance and high mechanical strength.
7. Easy to process:Graphite materials are easy to process into various shapes and sizes to meet different needs.
8. Environmentally friendly:Graphite crucibles can be reused to reduce waste, and are easy to handle after being discarded, which is environmentally friendly.

Item		Technical Data
Volume Density (g/cm3)		2.70-2.75
Apparent Porosity (%)		7-8
Strength at Normal Temperature (Mpa)		>50
High Temperature Bending Strength (Mpa/1400ºC)		>55
Cold Crushing Strength (Mpa)		>90
Refractoriness Under Load (ºC)		>1750(T2)2Kg/cm2
Maximum Service Temperature (ºC)		1450
Pyroconductivity (Kca l/m.h.ºC)		13.5-14.5
Thermalexpansivity (×10-6/ºC)		4.2-4.8
Chemical	SiC	>90%
	Fe2O3	<0.3%
	Al2O3	>99%(surface coating)

Q1 : How can you control your quality? A1 : For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2 : What is your lead time?
A2 : It usually needs about 15- 20 days after receiving the PO.
Q3 : Do you provide free samples?
A3 : Yes, free samples are available, generlly speaking, the buyer shall bear all the delivery cost.
Q4 : What is your payments terms?
A4 : We can accept 30% deposit, 70% balance to be against the BL copy or by LC, or other payment terms.
Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit JUCOS company.
Q6 : What standards do you have?
A6 : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.
The third party testing is all available for us.
