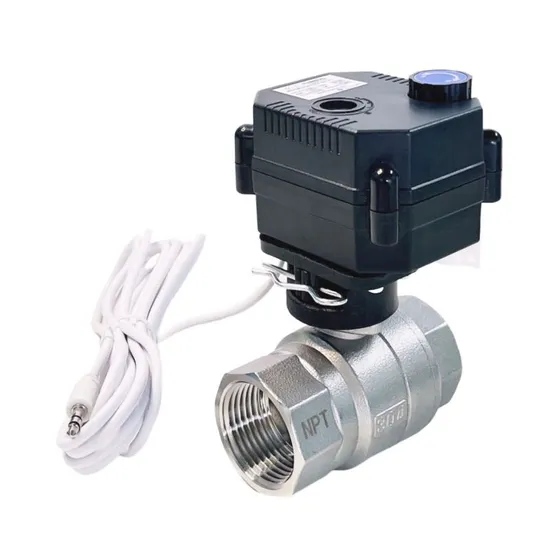

2 Way Motorized Ball Valve Electric Actuator 1/2′′ 3/4′′ 1′′stainless Steel Valves

Product Description

2 Way Motorized Stainless Steel Ball Valve Electric Actuator 1/2'' 3/4'' 1''Stainless Steel Valves
Product Overview Product Parameters

Series	Torque	Operating time	Working volatge	Working current	Max Power	Medium temperature	Ambient temperature
FH-MO FH-S	2.5NM	<5Seconds	5VDC 9-24VADC 110V-230VAC	<100mA	5W	0-100ºC	-20-45ºC
Humidity	Max pressure	Enclosure	Service life	Wiring diagram
95%	1.0Mpa	IP67	80000 times	OP01/OP02/OP03/OP04/OP05

Wiring diagram
Cautions
1. Make sure that the voltage of power supply meets the requirement of the actuator.
2. The wiring should comply with local standards and operated by qualified personnel. When installing or repairing, the power should be cut off to prevent electric shock and damage to the equipment.
3. For the illustration below, the valve is normally closed by default.
Details
Feature
1. Precision metal gear, high strength, reliable performance, long service life
2. Multiple wiring for remote control and valve status feedback to intelligent control unit
3. Low power consumption, battery workable
4.Compact, exquisite structure for small equipment
5. IP 67 protection, applicable for humid environment
6. With visual position indicator
7. Manual override available for option
Clip-Pin Connection Optional
Clip-pin actuator and valve body connection makes: a. installation much easier; b. repairing much less troublesome; c. tremendous reduction in inventory for retailers.
Various connectors customizable
Various connectors customizable to fit into different control systems and meet requirement of different scenarios.
Applications
Automated Systems & Machinery - water supply and drainage system, smart home, municipal water supply, water treatment systems, irrigation system, fire fighting system, recreational vehicle (RV), trailer home, sprinkler truck, HVAC system etc.
Why choose us
Flomarvel Technology Co., ltd (Tianjin Huayi Chenlong Technology Co., Ltd)
Has been specialized in the R&D and production of electric ball valve/motorized ball valve for more than 10 years. Our products are mainly exported to Canada, the United States, German, Sweden, Netherlands etc. And they are mainly used in equipment and system automation, smart home, building automation, municipal water supply etc. We have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer's project requirements. Welcome to contact us about your needs.
"Details matter" Is our culture. We serve our customers well by doing each small thing and each valve well.
FAQ
1. Is OEM/ODM service available?
As a manufacturer, we have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer's project requirements. Welcome to contact us about your needs.
2. How many days is the lead time? For standard products, when the order quantity is less than 50pcs, the lead time would be about 3 working days; when the order quantity is 50-200 pcs, the lead time would be 7 working days, for 200-1000pcs order, it would be 15 working days.
3. How do you do the shipment? Our products are mostly shipped by express, such as UPS, DHL, Fedex etc. If the shipment could be done with cilent's courier account as payer, or the shipment is to be done by clients' own forwarder, then of course no freight charge. Otherwise, we could quote for the shipping cost, if it is acceptable to clients, then we can do the shipment. For bulky order, surely we could also check the cost of shipment by air or by sea.
4. What is the MOQ? Actually we don't have requirement about the MOQ, because for most clients, they would need to test sample first, which could be 2 pcs.
