Automatic Customized 10000kN6000mm Multi Axis Tandem CNC Press Brake Bending Machine for Sheet Metal Processing with System (delem, esa, cybelec)

Product Description

Product Description

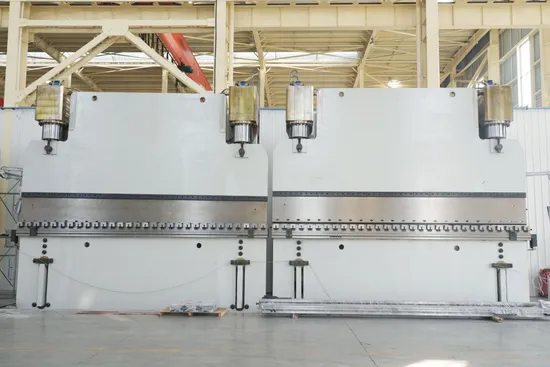

2HPA Tandem CNC Press Brake
Introducing the 2HPA Tandem CNC Press Brake, a marvel of engineering that stands as a beacon of flexibility and efficiency. Designed with precision in mind, this machine effortlessly tackles a diverse array of bending tasks. Its prowess shines through when handling extended workpieces, such as the majestic 12-meter light poles, executing each task with unparalleled ease and accuracy. The 2HPA's ability to operate independently or in tandem with other machinery elevates its adaptability, seamlessly integrating into various production needs and workflows, making it an indispensable asset in sheet metal fabrication.
In addition to the advanced hardwareadvantages, the 2HPA Tandem Series Press Brake also boasts cutting-edge software support that is simply unrivaled. In collaboration with CNHAWE, leading controller manufacturers offer extensive application libraries alongside bespoke development services. This empowers users to finely tune machine settings to meet their precise requirements. These innovative software tools aid operators in optimizing bending sequences, accurately predicting material rebound, and significantly minimizing trial and error, thereby elevating efficiency and ensuring exceptional product quality.Following over a decade of relentless innovation and iterative advancements, CNHAWE's electro-hydraulic servo control technology has reached unprecedented heights. This remarkable achievement has not only set a new benchmark within the industry but has also heralded a new era of excellence in the realm of press brakes, continuously propelling the sheet metal fabricating industry forward with unmatched vigor and vision.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
2-HPA-220-4100	2200	4100	230	180	13	170	3600	410	220	490	13	4280*1830*2790
2-HPA-400-4000	4000	4000	700	100	8	80	3100	500	300	610
2-HPA-400-5000	4000	5000	700	100	8	80	3800	500	300	610
2-HPA-400-6000	4000	6000	700	100	8	80	4800	500	300	610
2-HPA-500-4000	5000	4000	800	100	8	80	3100	500	300	610

Detailed Photos
CNC Controller
CNC controllers are the heartbeat of precise motion control in press brakes. At CNHAWE, we incorporate the esteemed technology from leading global innovators, including Delem from the Netherlands, ESA from Italy, and Cybelec from Switzerland, ensuring unparalleled performance and reliability.With meticulous tuning, we enhance the synergy between our advanced controllers and the robust press brake machines. Our sophisticated core assembly techniques, paired with state-of-the-art tuning methods, unlock a plethora of high-end optional features, offering our customers a personalized and superior experience.CNHAWE controllers are synonymous with precision and productivity, boasting features like instant angle adjustments, extensive 2D/3D programming, and sophisticated multi-axis control. These advanced capabilities ensure consistently exceptional output, time after time.Back-gauge
The CNHAWE back-gauge system stands as a beacon of innovation within the press brake industry, offering unmatched motion precision and reliability.Incorporating premium imported ball screws and linear guides, CNHAWE's CNC series press brakes achieve extraordinary accuracy and uniformity, enhancing production quality and consistency.Our back-gauge systems' frames endure a specialized high-temperature tempering process to eradicate internal stress, boost metal plasticity and resilience, and avert precision degradation from frame distortion.For unparalleled control and precision, our stop fingers feature a synchronized pulley mechanism, driven by a servo motor, providing exceptional accuracy for the CNC press brake's back-gauge system.Servo Motor
Leading the charge in industrial automation, servo motors deliver exceptional dynamic performance and boost machine efficiency with reduced energy consumption. They stand as the go-to technology for enterprises aiming for excellence. Compared to traditional motors, servo motors offer up to 35% energy savings, significantly enhancing efficiency while cutting operational expenses.Punch & Die Tools
Before proceeding with an order, it is crucial to carefully select the right press brake punches and dies. The perfect punch-die combination is key to achieving precise bend configurations. Our robust tools, particularly for heavy-duty 2HPA tandem models, can be custom-crafted for one-on-one precision. This not only meets specific client needs but also streamlines the process, minimizing potential issues. Our personalized tooling solutions are tailored to meet exact bending requirements provided by our discerning customers.
Crowning System
Perfectly aligning the deformation curve of the slider with the compensation curve, our crowning system ensures that straightness and angle consistency are unwavering throughout production. Dominating a substantial share of the domestic market and reaching global shores, our partnership with Dutch leader Wila allows us to offer premium options, catering especially to our valued European and American clientele.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
