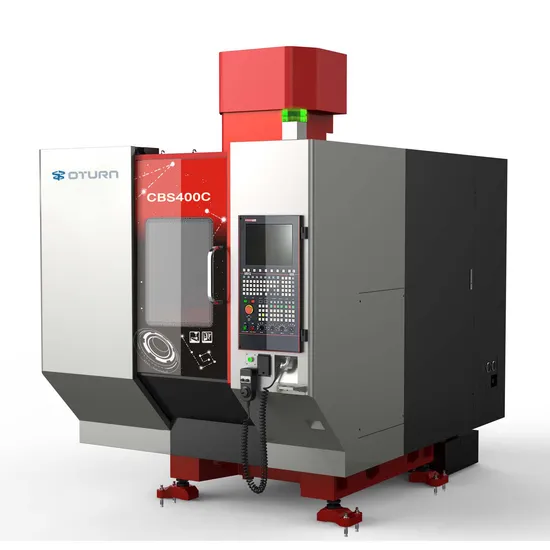

Oturncnc OEM High Torque CNC 5 Axis Milling Center CBS400c

Product Description

Product Description
The high-speed precision five-axis bridge type machining center CBS400C has the characteristics of high rigidity, high precision and high efficiency machining. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, allowing high-precision processing to be maintained for a long time; the entire machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 30M/min, the T-T tool changing time only takes 5 seconds, and there is no alarm for 24 hours when the tool magazine is fully loaded. Each machine's trial processing sample has passed the running machine and three-dimensional inspection, ensuring the high efficiency and continuous stability of the machine tool after leaving the factory. . It is suitable for concave and convex models with complex two-dimensional or three-dimensional shapes that require one-time processing of five-axis linkage. It is more suitable for small and medium-sized batches of multi-variety processing and production, and can also be used for automatic line mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs
Product Parameters

Item		CBS400C
Travel	X/Y/Z axis travel	460*390*400
	Spindle nose to table center	155-555
Spindle	Spindle taper	E40
	Max.spindle speed	30000
	Spindle power(continuous /S3 25%)	11/13.2
	spindle torque (continuous /S3 25%)	11.5/13.8
Feed rate	Rapid speed of (X/Y/Z)m/min	30/30/30
	mm/min Cutting feed	1-12000
Rotary table	Rotary table diameter	400*400mm
	Allowable load weight	100kg
	A axis tilting angle	±110
	C-axis rotation	360°
	A-axis rated/max speed	30/60
	A-axis rated/max cutting torque	940/2000
	C-axis rated/max speed	800/1500
	C-axis rated/max cutting torque	42/60
	A positioning precision / repeat positioning precision	10/6
	C positioning precision / repeat positioning precision	8/4
ATC	Number of tool	26
	Max. tool diameter / length	80/200
	Max. tool weight	3
	Tool change time (tool to tool)	4
Three axis	X-axis guide (line rail width / number of sliders)	35/2
	Y-axis guide (line rail width / number of sliders)	45/2
	Z-axis guide (line rail width / number of sliders)	35/2
	X-axis linear motor thrust (continuous/max)	φ40×10 ((screw))
	Y-axis linear motor thrust (continuous/max)
	Z-axis linear motor thrust (continuous/max)
Accuracy	Positioning precision	0.005/300
	Repeating positioning precision	0.003/300
Power	Power supply capacity	35
	Air pressure	≥0.6Mpa ≥400L/min
Machine size	Machine size (LxWxH)	2000*2910*2850
	Complete machine size(LxWxH)	3360*2910*2850
	weight	5T

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
